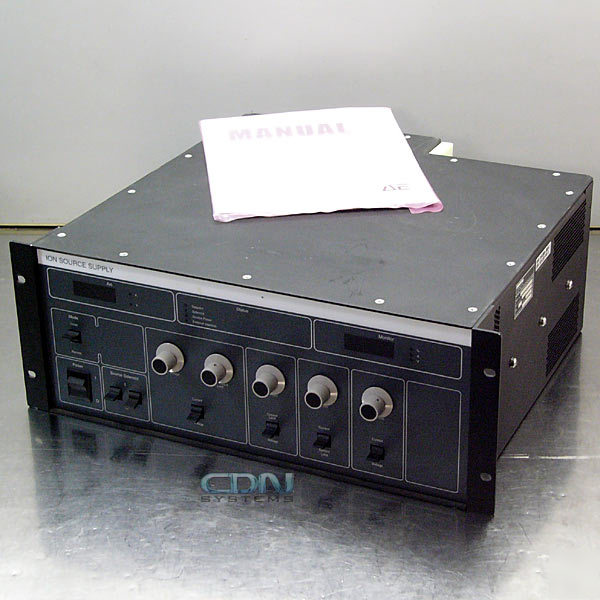

Advanced Energy Implanter DC Arc Power Supply 3 Outputs
* 0-70V, 0-20A (floating polarity)
* For noisy, negative impedance loads
* 0-4V 0-200A (floating polarity)
* Voltage regulated ramp-up, then current regulated
* 0-10V 0-10A (positive polarity W.R.T. ground)
* Input power: Input power: 202-237VAC (220 nominal) 1phase, 47-63Hz, 21A (max)
* LED Digital Meters: Arc current/voltage, filament current/voltage, solenoid current/voltage, beam current %
* Indications: Setpoint, solenoid, source power, and external interlock
* Front panel controls: 10-turn potentiometers for arc voltage and current limits, filament and beam current limits, and solenoid current. Paddle switches for local/remote control, on/off controls for outputs, and meter functions
* Digital: solenoid enabled bus OK, circuit breaker indicator, remote indicator, setpoint, and source enabled
* Analog: solenoid current and voltage, filament current and voltage, arc current and voltage
The IDXII supply combines an arc supply, filament supply, and magnetic solenoid supply into one common-chassis power supply unit. It is designed for use with an implanter. It provides simple control with an external interconnect and a compact design for simple installation. The IDXII uses three independently regulated power supplies to provide arc, filament, and solenoid power. The three supplies use a pulse-width-modulated switching technology that minimizes total unit size while increasing efficiency. Both voltage and current are displayed on the front panel and through the rear panel I/O connector. Controlling inputs are available through the front panel and the user I/O port on the rear panel.
