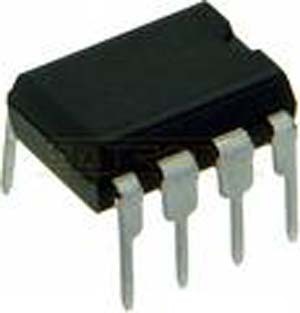

HP2530 HCPL2530 dual opto isolators 1 piece
HP2530 HCPL2530 Dual Opto Isolators
These dual channel optocouplers contain a pair of light emitting diodes and integrated photodetectors with electrical insulation between input and output. Separate connection for the photodiode bias and output transistor collectors increase the speed up to a hundred times that of a conventional phototransistor coupler by reducing the basecollector capacitance.
* 15 kV/ms Minimum Common Mode Transient Immunity at VCM = 1500 V (HCPL-4534/0534)
* Available in 8 Pin DIP, SO-8, and 8 Pin DIP Gull Wing Surface Mount (Option 020) Packages
* Guaranteed Performance from 0 C to 70 C
* Safety Approval - UL Recognized 2500 V rms for 1 minute (5000 V rms for 1 minute for Option 020) per UL1577 CSA Approved
* Single Channel Version Available (4502/3, 0452/3)
* MIL-STD-1772 Version Available (55XX/65XX/4N55)
* Line Receivers High Common Mode Transient Immunity (>1000 V/ms) and Low Input-Output Capacitance (0.6 pF)
* High Speed Logic Ground Isolation TTL/TTL, TTL/LTTL, TTL/CMOS, TTL/LSTTL
* Replace Pulse Transformers Save Board Space and Weight
* Analog Signal Ground Isolation Integrated Photon Detector Provides Improved Linearity over Phototransistor Type
* Isolated Analog Amplifier Dual Channel Packaging Enhances Thermal Tracking
