Hp 8018A serial data generator with opt 001

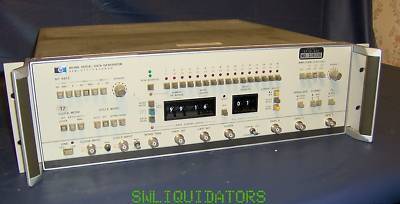

HP 8018A Serial Data Generator with OPT 001
HP 8018A Serial Data Generator. Opt. 001.
With 2048 programmable bits, and a choice of pseudo-random binary sequences (prbs) ranging to over 1 Mbits, the HP 8018A is a powerful stimulator for serial digital systems and devices requiring high bit rate and fast pulses. Even preamble-data-post-amble data link patterns are feasible by combining prbs and programmed data. Useful synch outputs simplify testing by locking scope or analyzer to unique points in the data stream. For dual-channel applications, the memory splits so that the outputs have independent 1 Kbits of data. A high performance output amplifier adds to the HP 8018A's wide applicability. 6 ns pulses with repetition rates from dc to 50 Mbits/s. Output amplitude is variable up to 15 volts into 50 Ohm. This enables you to directly drive logic circuits ranging from TTL to CMOS. Output levels for emitter-coupled-logic (ECL) are also provided.
Item is in good physical and cosmetic condition. Rack Mountable. All buttons, switches, dials and bnc connectors are in working condition.
Unit has been tested and found to have excessive ripple on 5.2V Supply (bad cap). However, has been tested and does work.
