New kistler morse kistler-morse stx-m-a-i-x stxmaix

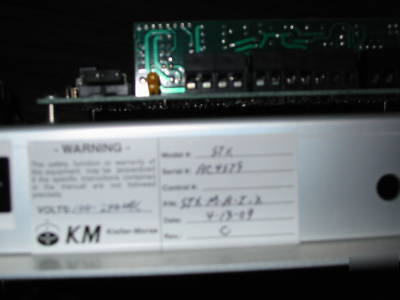

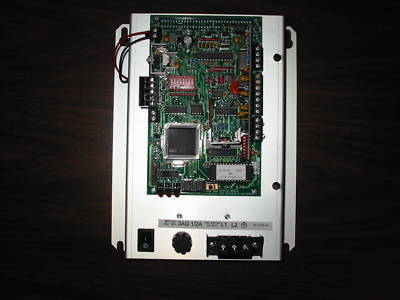

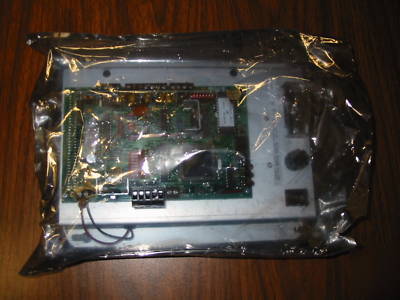

NEW Kistler-Morse STX-M-A-I-X STXMAIX
Signal conditioner and power supply
Simple yet powerful device with serial
output and optional analog output to
communicate effectively with host control
Separates mixer and plant vibrations from
weight changes. This provides accurate and
High-resolution Weight Conversions
Selectable resolution up to 21-bits to
optimize speed with system performance
Versatile interface for data collection,
servicing and building large multi-vessel
NEMA-4X fiberglass reinforced polyester
(FRP) or optional stainless steel as well as
Digital output standard with optional
Transducers/Sensors: All KM half-bridge,
Excitation: Programmable between 5 and
Resolution: Selectable 16-bits (1 part in 65,536) to
21-bit (1 part in 2,097,152) in 1-bit increments
Conversion Speed: 20 mSec at 16-bits; 125 mSec at
Span: Programmable between +/-3.0V @ 12V
Excitation, Gain = 1; +/-19.5 mV @ 10V Excitation,
Temperature Stability: Zero 1 ppm/ C;
Common Mode Rejection: 92db min @ DC;
Normal Mode Rejection: 100db min @ 60Hz
Programmable Filter Range: 1.95 Hz to 205.5 Hz
Built-in Serial Communication: RS-422, RS-485
(optical isolation standard), TTL, 300, 1200, 2400,
4800, 9600 or 19.2 K baud for multi-drop single
cable connection; RS-232 compatible for single point
Resolution: 14 bit (1 part in 16,384)
Maximum Load: 600 ohms with internal loop supply;
up to 2400 ohms with external loop supply
Electrical (sensor loads not included)
DC Power (standard): 14.4 VDC to 30.0 VDC @ 80
mA; 225 mA with 0-20/4-20 current output option
AC Power (optional): 87-110 VAC, 15 watts
maximum, 50/60 Hz; 105-132 VAC, 15 watts
maximum, 50/60 Hz; 192-242 VAC, 15 watts
