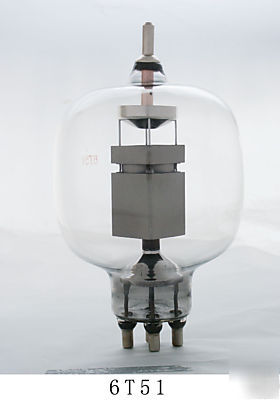

Shuguang 6T51 vacuum tube x 1
Glass crust straight heating thorium-tungsten cathode large power tridoes 6T51, natural wind cooling. Its anticathode limit dissipation power is 800W. When its working frequency is not higher than 50MC, its output power can reach 2.2 KW. It adapts to large power, and can be used in high frequency equipment in industry to surge.
6T51 is the same with FU-605 7092, and can be exchanged each other.
limit rating, working frequency 50MC
plate dissipation power 800 W
grid dissipation power 800 W
maximum message input power 120 W
filament heating time 60 sec
temperature of glass crust 350 C
temperature of connect place 220 C
temperature of fetch thread end 220 C
input capacitance 12.1 PF
output capacitance 0.21 PF
transroute capacitance 6.5 PF
Pout 1.56 2.16 2.78 kW
