Tektronix GTS1250 gbic test sys fibre chnl/gig ethernet

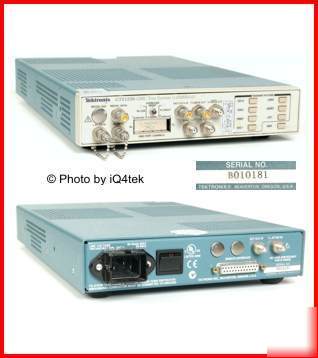

Tektronix GTS1250 GBIC Test System for Fibre Channel and Gigabit Ethernet
Successfully powered up as indicated by illumination of front panel LEDs; noted item was in good cosmetic condition.
* Compact Platforms for Testing and Characterizing Industry-standard GBIC Modules
* Built-in Generator for Standard Jitter Test Patterns
* Electrical Input for External Transmit Patterns
* Differential Unbuffered Output for Serial Receive Data Stream
* Serial Clock and Data Recovery (Option)
* Test and Evaluation of GBIC Modules
* Verifying Compliance to Fibre Channel and Gigabit Ethernet Standards
* Bit Error Rate Testing of Fiber Optic Links
* Supports Diagnostic Waveform Analysis of GBIC Receive Signal
* GTS1063*1 Supports Fibre Channel
* GTS1250 Supports Gigabit Ethernet
Gigabit Ethernet and Fibre Channel are developing into leading communication standards for the backbones of local area networks and enterprise storage systems. In support of these technologies, Gigabit Interface Converters (GBICs) have become an industry standard for interfacing network hubs, processors and storage devices via optical fiber links. The GTS1063*1 and GTS1250 are instruments for testing and evaluating GBICs. They accept GBICs via a receptacle on the front-panel, and provide access to their electrical Transmit and Receive interface, as well as all other monitoring pins.
Programmed or External Test Patterns
For the transmitter side of the GBIC, the instruments can generate test patterns based on Fibre Channel and Gigabit Ethernet standards, and accept externally generated patterns. The built-in patterns are selected on the instrument front-panel or remotely through TTL levels. In addition, the instruments provide inputs for jitter modulation of the transmit data.
Receive Signals with Clock Recovery (Option 01)
On the receiver side of the GBIC, the instrument makes available the recovered and retimed data, and the recovered clock for Bit Error Rate Testers and eye pattern triggering. For diagnostic waveform analysis, the complementary unbuffered data signal from the GBIC is also made available.
