2001 daewoo DHP630 horizontal machining center

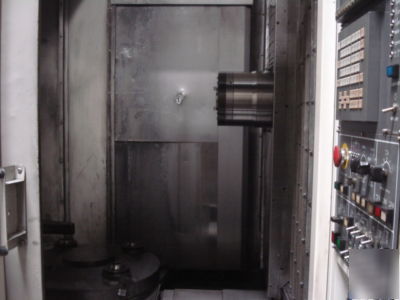

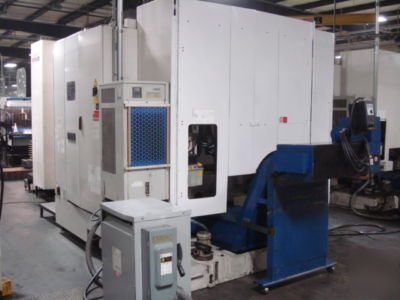

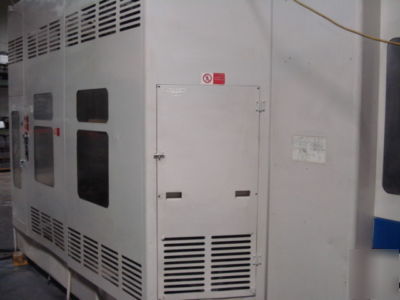

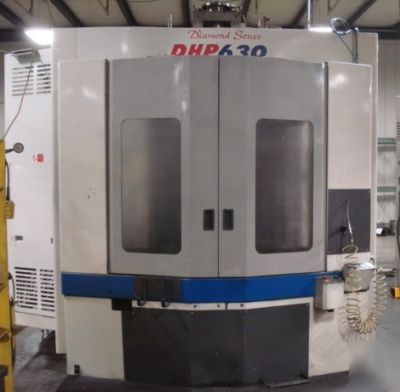

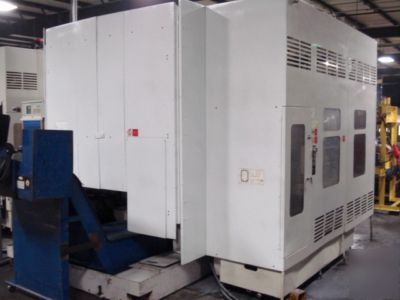

2001 Daewoo DHP630 Horizontal Machining Center. Machine is in good condition and can be viewed under power. Machine has thru spindle coolant and a full 4th axis. Please contact Everett Dahlberg at (***)-930-9646 or Jason Stob at (***)-790-3358

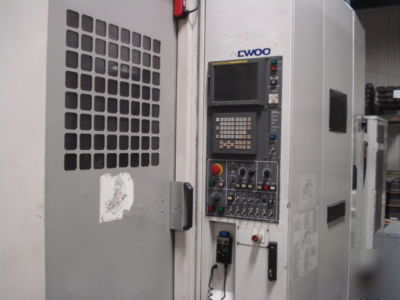

Control............................................................................................ Fanuc 16iMB
Pallet Table Size........................................................................ 24.8" x 24.8" x 2
Max Table Load.................................................................................... 2,200 Lbs
Pallet index Time................................................................................ 12 Seconds
Table Indexing......................................................................................... 360,000
X-Axis Travel.............................................................................................. 39.4"
Y-Axis Travel.............................................................................................. 33.5"
Z-Axis Travel............................................................................................... 33.5"
Spindle Nose to Pallet Center............................................................. 5.9" ~ 39.4"
Spindle Center to pallet Top.............................................................. 2.9" ~ 36.4"
Spindle Taper........................................................................................... CAT 50
Spindle Speed..................................................................................... 6,000 RPM
Spindle Motor............................................................................................. 40 HP
Rapid Traverse Rates........................................................................... 1,260 IPM
Tool Changer...................................................................................... 60 Position
Machine Weight.................................................................................. 45,100 Lbs
Machine Dimensions..................................................... 138"W x 274"D x 134"H
Auto Doors (Not Currently Connected)
1 Year One New Spindle Bearings
