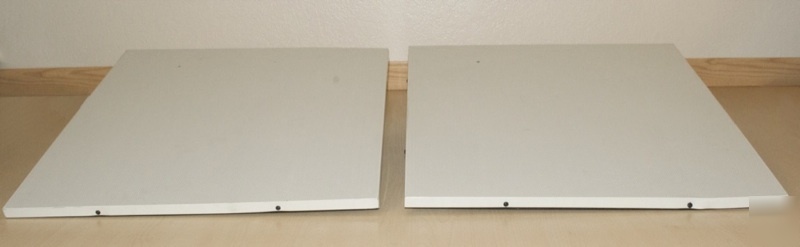

Bogen model ACD2X2 amplified drop-in ceiling speakers
Bogen Model ACD2X2 Amplified Drop-in Ceiling Speakers
Bogen Communications International, Inc
ACD2X2 Drop-In Ceiling Speaker
Bogen's ACD2X2 Drop-In Ceiling Speaker is a full-range, 1-watt, self-amplified speaker that is quick and easy to install. Simply wire it and drop it into place.
5" Height x 23.88" Width x 23.88" Depth
with back can and recessed volume control
Bogen's ACD2X2 Drop-In Ceiling Speaker is a full-range, 1-watt, self-amplified speaker that is quick and easy to install. Simply wire it and drop it into place. Available in off-white (ACD2X2) and bright white (ACD2X2U).
The ACD2X2 is 2' x 2', designed to fit perfectly into place in 2' x 2' ceiling grids - without needing to cut ceiling tiles.The ACD2X2 can also be easily installed in 2' x 4' ceiling grids using the included support rail.
For use with both 2 ft.x 2 ft.and 2 ft.x 4 ft.sus- 8" main cone speaker, with secondary cone
pended tile ceilings (support rail crossbar included for 2 ft. x 4 ft. suspended tile ceilings)
Finely perforated grille covers entire front of speaker
Fully enclosed, industrial grade steel construction Self-contained 1-watt amplifier
Front-mounted, recessed volume control
Non-reflective finish, available in off-white (ACD2X2) and bright white (ACD2X2U)
Seismic attachment points Complies with UL-2043
Max. SPL: 94 dB (1m) Frequency Response: 95 Hz - 12 kHz
SupplyVoltage: 24VDC Typical Current Units: 1 CU (50 mA)
Idle Current: 5 mA (nominal) Input Sensitivity: 125 mVrms
The speaker shall be a Bogen Model ACD2X2 (or ACD2X2U) Drop-In Self-Amplified Ceiling Speaker, which shall be fully enclosed and constructed of indus- trial grade steel. It shall be comprised of a damped high-compliance factory-mounted 8" loudspeaker that shall consist of an 8" treated paper cone and a 10-ounce magnet, including a secondary cone.
The unit shall have a 1-watt amplifier. The typical current consumption shall be 1 CU (50 mA). Frequency response shall be 95 Hz - 12 kHz. Input sensitivity shall be 125 mVrms. Input impedance shall be 2k ohms. Dispersion shall be 100 .
Dispersion: 100 Cone: 8" cone speaker, with secondary cone
MagnetWeight: 10oz. Connection: Wire leads via wire nuts (included) Dimensions: 23-7/8"W x 5" H x 23-7/8" D
The speaker shall have a non-reflective, off-white (or bright white for ACD2X2U) metal finish grille with a recessed volume control accessible through front grille. It shall include 4 seismic attachment points.
The speaker assembly will fit into 2' x 2' and 2' x 4' ceiling tiles. For 2' x 2' installations, a support rail shall not be needed and no cuts to the ceiling shall be nec- essary. For 2' x 4' installations, a single cut to the ceil- ing tile and an included support rail shall be needed.
The speaker shall measure 23-7/8" W x 5" H x 23-7/8" D and shall weigh 12 lb.
