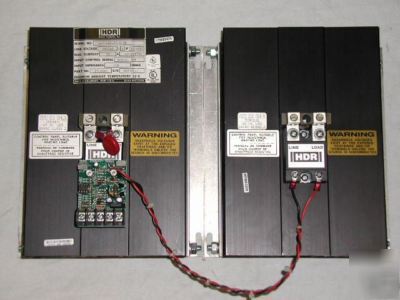

HDR Power Systems Power Control System #ZF2-480-70-V-TX
Used equipment in excellent condition
* Model No.: ZF2-480-70-V-TX
* Line Voltage: 480 VAC, 3 Phase, 50/60 Hz.
* Max. Current: 70 Amps Resistive
* Input Control Signal: Manual Pot
* Input Impedance: 20 k
* Isolation: 2500 volts rms from power circuit to command signal and to ground
* Ambient Temperature: Operating: 0 to 50 C Storage: 10 to 70 C
* Relative Humidity: 0 to 95% (non-condensing)
* The ZF2 Series are three-phase, zero-fired Solid-State Relay (SSR) Power Controls designed to deliver maximum power control with the reliability normally found in much larger units. Utilizing only two frame sizes, these units are conservatively engineered for years of trouble-free service while providing the benefits of precise, reliable control for your electrical process.
* Multi-turn zero and span adjustments are provided for matching the SCR power control to the command signal. The command signal indicator's (green) flash rate provides a visual indication of the output voltage.
* Primarily used to control static resistive or non-inductive loads such as:
* Small electric furnaces
* Electric ovens, kilns & heaters
* Extrusion or injection molding
