Vertical knee mill machine 3HP 9"X49" variable speed

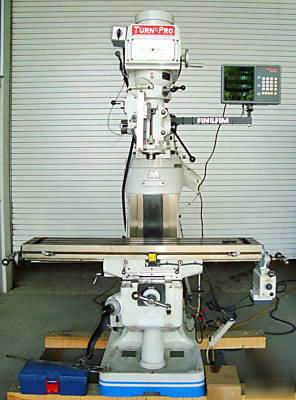

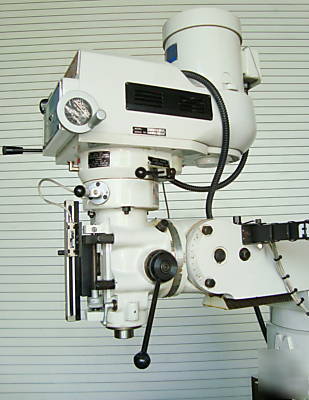

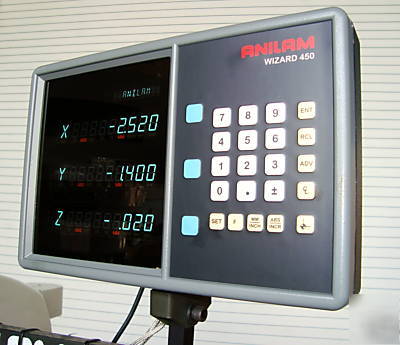

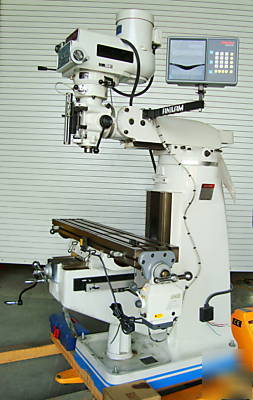

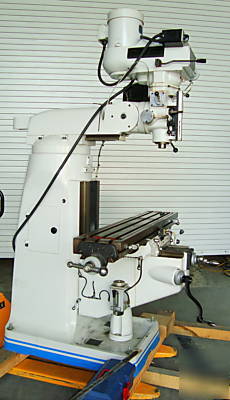

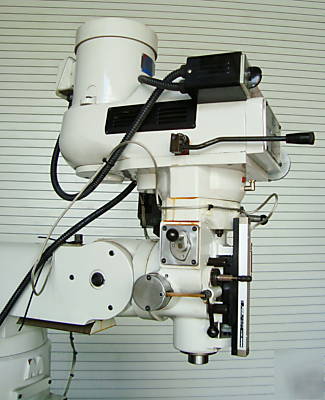

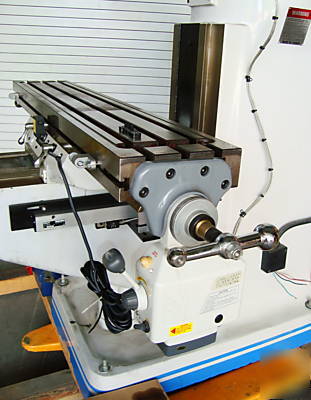

9" x 49" VARIABLE SPEED KNEE MILLING MACHINE, 3 HP / 230 VOLT / 3 PHASE. INCLUDES ANILAM 450 DRO QUILL PACKAGE AND WORKHORSE AL-400S POWER FEED FOR TABLE.
SIMILAR TO MODEL SAVE HUGE ON THIS DECKED OUT MACHINE.
# 307-3690 They sell it for $9349, we're asking $6500
http:// /CGI/INSRIT?PMAKA=307-3690
THIS KNEE MILL APPEARS TO BE A NEW SURPLUS ITEM IN EXCELLENT CONDITION.
IT HAS BEEN POWERED UP TO TEST AND IT RUNS GREAT.
ALL OF THE FUNCTIONS APPEAR TO OPERATE AS THEY SHOULD.
PLEASE REFER TO THE VIDEO TO WATCH IT OPERATE!
Inch/Revolution:(3) 0.0015 , 0.003 , 0.006
Spindle to Table - 0"Min./ 18 5/16" Max
Spindle to Column: 5.5" Min./ 20" Max
Head Swivel, with Locks, RH / LH: 90 /90
Head Tilt - Forward & Back: 45 /45
Machine Dimensions: 85 H x 59 W x 55 L
Parallelism X-Axis 0.00075/20
Parallelism Y-Axis 0.00065/12
Knee Movement - Square to Table Top 0.0004/12
Ram Slide - Parallel to Table Top 0.0008/12
NO LOCAL PICKUP & NO RESIDENTIAL DELIVERY !!!
NJB / 092509 / PR 45C&D / X6779
