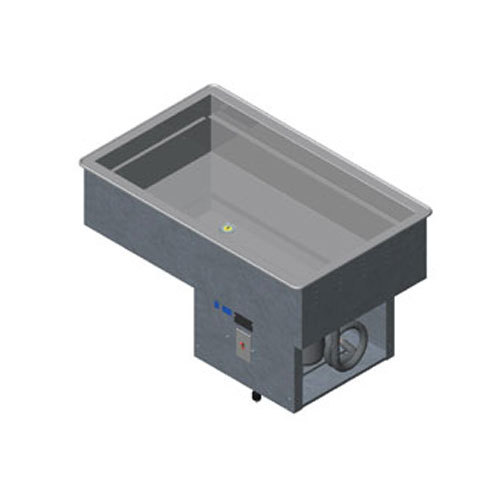

Vollrath 36429 refrigerated cold pan, 2 pan unit, drop
Refrigerated Cold Pan, 2 Pan Unit, Drop In, 29" Long x 26" Wide
One year parts and labor warranty. Additional four years on compressor -view pdf
2-PAN NSF7 REFRIGERATED COLD PAN MODULAR DROP-IN, 18-8 s/s, drip-free flange, polyurethane foam insul., 6-5/8" deep well, 1/4 HP compressor, 120V, 4.9A, 5-15P plug, OA dim 29"x26", cutout dim 28-1/4"x25-1/4", 7/8" corner radius, display area length 24-3/4", 5 business day lead time, USA made
* The modular drop-in NSF7 refrigerated cold pans are designed for top-mount installation.
* A full-perimeter drip edge contains spills and condensation within the stainless steel countertop area of the drop-in.
* High-density polyurethane foam insulation surrounds the exterior of the well to provide most efficient performance with energy savings.
* A 3" recess lowers the food pan below the work surface to minimize the impact of ambient air. The 6 5/8" deep display well is designed to accommodate standard 12" x 20" pans up to 6" deep.
* Refrigeration coils surround the exterior side walls of well for maximum cooling. Refrigerant is R134A to meet federal standards.
* 1" integrated drain is standard. Optional perforated false bottom.
* Condensing unit suspended below well
* Temperature control on compressor.
* For complete air circulation, two openings in the cabinet are required. Louver cutout size is 8" x 10"
* Unit comes with cord and plug and does not require hard wiring.
* On/Off switch is mounted on side of compressor housing.
* Positioning clips provided to center drop-in within cutout.
* Cold drop-ins are best used for holding periods up to 4 hours. For best performance, stainless steel containers are recommended
* Modular drop-in orders cannot be canceled or returned
* Manufacturer: Vollrath Company
