King nutronics portable dry well tmp. calibration 3604A
King Nutronics Portable Dry Well Tmp. calibration 3604A. The unit is in good cosmetic condition, as well as operating condition.
The model 3603-A is a self-contained, light weight, portable dry well temperature calibration system which is capable of generating, controlling, measuring, and displaying the temperature transmitted to temperature devices throughout the range of 100 F to 600 F.

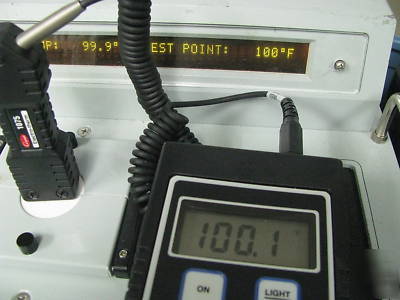

The calibrator is easy to operate, using front panel controls. The testing process is fast, consisting of manually setting the desired test point temperature on a four decade switch then observing the measured temperature on a 16 character digital display. The temperature can be selectivly displayed in either F or C
Maintenance and trouble analysis have been simplified by using modular component assembly techniques, minimai software and an automatic self-test routine. Troubleshooting can be performed without an in-depth knowledge of the internal software and logic functions.

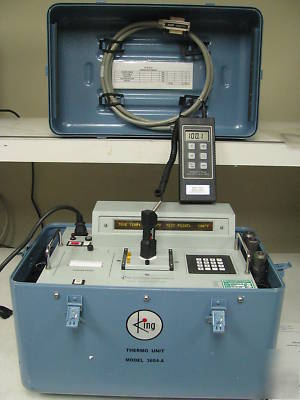

The Model 3604-A is a self contained, portable dry well temperature calibration system which is capable of generating, controlling, measuring and displaying the temperature transmitted to temperature devices throughout the range of 100 F to 1200 F.
The calibrator can be operated using front panel controls or remotely via an IEEE-488 bus interface. An on-board printer is included to provide hard copy of the test data when desired.
Safety features incorporated into the design of the 3604-A ensures safe operation at high temperatures both in the manual and remote, automated mode.
Standardization and calibration of the model 3604-A can be acccomplished automatically through the IEEE bus. The operation is totally hands-off and all test data is printed out on the on-board printer.

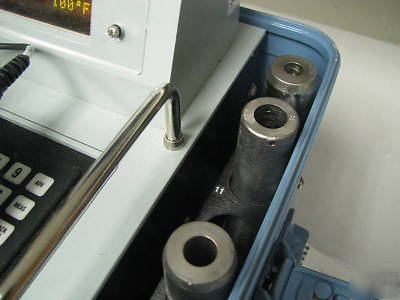

The calibrator is furnished in two :configurations. Part number 3604A-1-1 contains four adapter chucks selected to accommodate industrial applicafions. Part number 3604A-1-1O1 has twelve adapter Dhucks specifically designed to U.S. Navy requirements. This is the only difference between the part numbers.
