6.3" skoda t-type horizontal boring mill

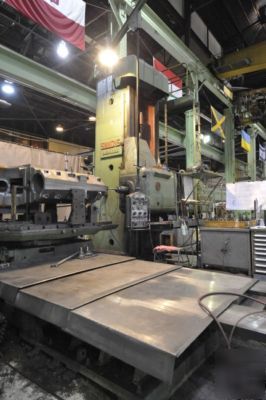

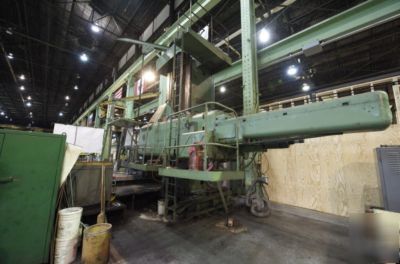

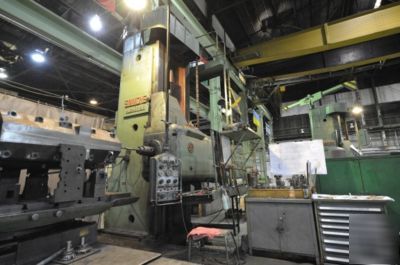

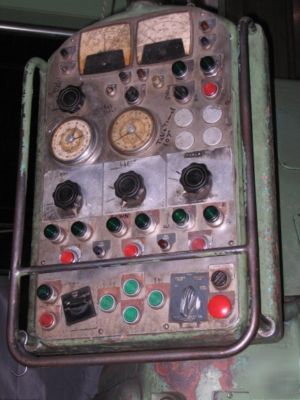

6.3" Skoda T-Type Horizontal Boring Mill
Spindle Diameter ..................... 6.29"
Vertical Head Travel, Y .............. 98.74"
Table Cross Travel, X ................ 119.125"
Spindle Travel, Z .................... 62.99"
Ram Travel, Z-1 ...................... 49.21"
Total Axial Travel, Ram and Spindle .. 112.20"
Ram Cross Section .................... 17.71" x 17.71"
Spindle Speeds: Inf Variable ......... 2-800 RPM
Spindle Taper, Quick Change Tooling .. 100 Metric
Boring Feeds, Spindle & Ram, Inf ..... 0.0625-63 IPM
Milling Feeds, Spindle Head, Inf ..... 0.0625-63 IPM
Rapid Traverse: ...................... 63 IPM
Thread Cutting, Metric (22) .......... 0.5-12 MM
Thread Cutting, Inch (32) ............ 28-1 TPI
Spindle Drive DC Motor Output ........ 13.2 HP to 47.5 HP
Overall Machine Height ............... 243.7"
Floor Space .......................... 406" x 183"
Machine Weight ....................... 133,000 Lbs

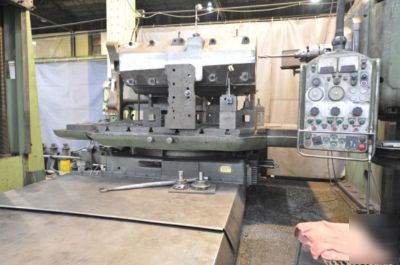

SKODA CROSS FEEDING ROTARY TABLE
Rotary Table Size .................... 78.74" x 108.26"
Table Travel on Bed .................. 119.25"
Height of Table Base to Top .......... 35.03"
Length of Table Bedways .............. 190"
Longidudinal Feeds, 3-Speeds ......... 0.095 to 0.760 IPM
Rotary Feeds, 3-Speeds ............... 0.174 to 1.400 IPM
Table Load Capacity .................. 44,000 Lbs
Table Weight ......................... 19,800 Lbs
2-Axis Acu-Rite III Digital Readout System
Beaver Quick Switch Adapter and Spindle Tooling
Inspect Under Power In North East Facility
