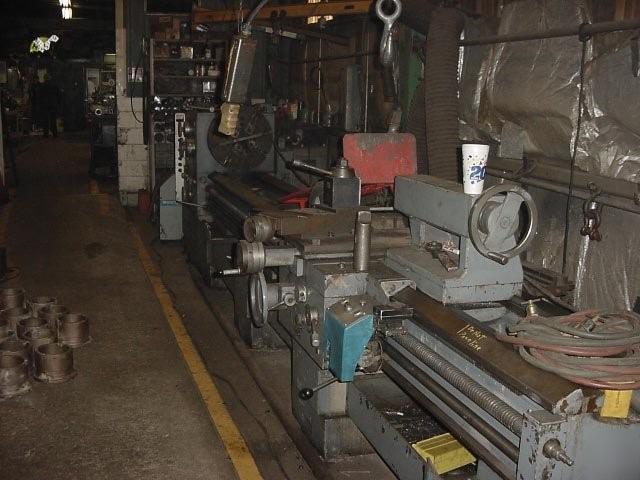

24/33" x 160" lansing gap bed engine lathe
24/33" X 160" LANSING GAP BED ENGINE LATHE
SWING OVER BED WAYS .......................... 24"
SWING OVER GAP ............................... 33-1/2"
SWING OVER SADDLE ............................ 15-1/2"
CROSS SLIDE TRAVEL ........................... 14-3/4
COMPOUND TRAVEL .............................. 7-1/2"
LENGTH OF GAP ................................ 12-5/8"
WIDTH OF BED ................................. 16-1/2"
SPINDLE BORE ................................. 4-1/8"
SPINDLE NOSE ................................. CAMLOCK D-1-8
NUMBER OF SPINDLE SPEEDS ..................... 16
RANGE OF SPINDLE SPEEDS ...................... 20-1500 RPM
RANGE OF LONGITUDINAL SPEEDS .(80) ........... .0058" - .1728"
NUMBER OF CROSS-FEEDS (80) ................... .0023" - .1728"
METRIC THREADS (40) .......................... .5 - 7.5
WHITWORTH THREADS (INCHES) ................... 60-4
MODULE THREADS (40) .......................... .25 -3.75
ENGLISH THREADS (40) ......................... 1/32"-15/32"
DIAMETRAL THREADS ............................. 120-8
TAILSTOCK SPINDLE ............................ MT#5
MAIN MOTOR ................................... 20HP
MACHINE WEIGHT ............................... 8,500 LBS
See additional photos on our web site: http://uen.hsix.com/q/webinv/015870=x,1086
