5009 gallmeyer & livingston model 250 hydraulic surface

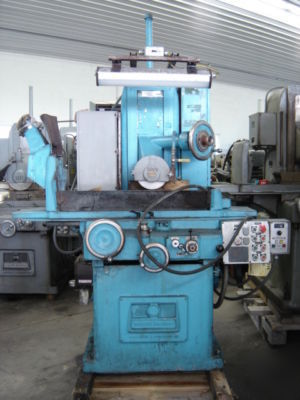

GALLMEYER & LIVINGSTON MODEL 250 HYDRAULIC SURFACE GRINDER
Working surface of table 6 x 18
Longitudinal table speeds 3 to 150 fpm
Longitudinal table travel (max) 23
Transverse table travel (max) 6
Standard wheel size 10 x x 3
Vertical movement of wheelhead 16
Distance from wheel to table (max) 15
Distance center of spindle to bottom of housing 2
Standard spindle speeds 2300 & 3000 rpm
Standard motors (spindle and hydraulic pump) 1 hp and hp
Approximate floor space 85 x 57
Machine is equipped with 6 x 18 Electro-Magnetic Chuck with Neutrofier.
