Acme transformer 10 kva 240 x 480 120/240 3R 10KVA 1 ph

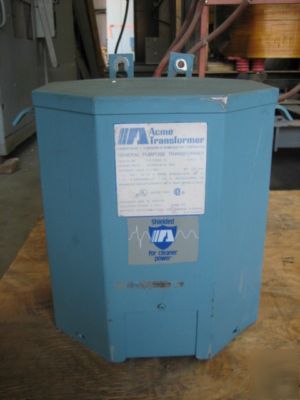

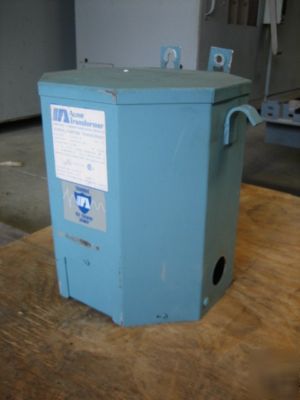

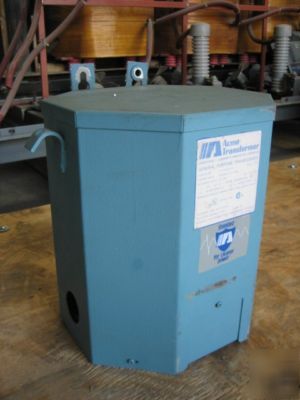

This Transformer is in Great Condition Internally and Good Condition Externally. This Transformer Has Been Previously Painted Blue. Lots of Taps!

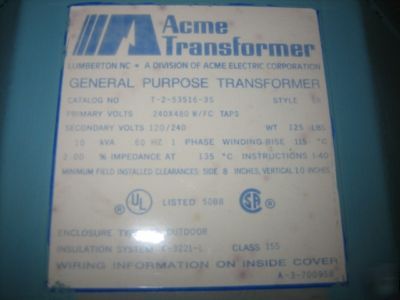

Catalog No: T-2-53516-3S Style SR
Primary Volts: 240x480 w/ FC Taps
Secondary Volts: 120/240 WT: 125 Lbs
10 kVA 60 HZ 1 Phase Winding Rise 115
2.00% Impedance at 135 C Instructions I-40
Minimum Field Installed Clearances: Side 8 Inches Vertical 10 Inches
Insulation System X-3221-L Class 155

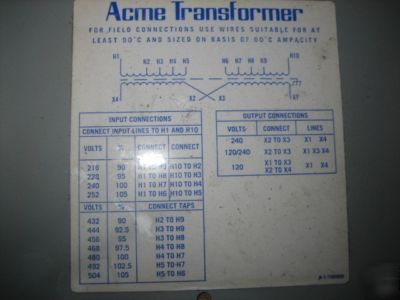

Connect Input Lines to H1 and H10
14" (Width) x 11" (Depth) x 15" (Height)
