Dayton 3N592 ba motor 1.5 hp 3-phase cw/ccw mint

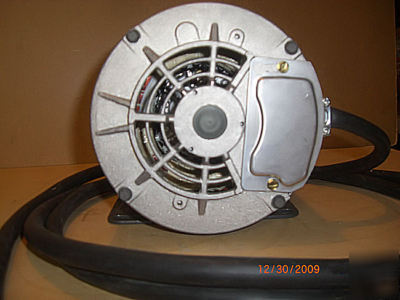

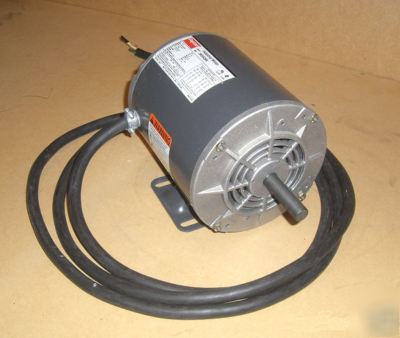

DAYTON 3N592 BA INDUSTRIAL MOTOR 1.5 HP
* 3-Phase Energy-Efficient Open Dripproof Motor

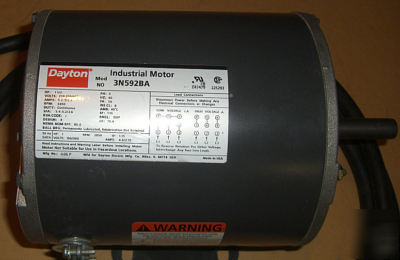

* Stainless steel nameplate.
* 56HZ frame with 5/8 x 2 1/4" shaft and base bolt-hole configuration to match 56, 56H, 143T, and 145T.
* Insulation Class F motors have Class B temperature rise for longer life
* UL Recognized and CSA Certified
* For clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment.
Bearings: Double-Shielded Ball
Overall Length (In.): 10 3/4
Length Less Shaft (In.): 8 7/8
Efficiency Group: Not Covered
Rated: 50 Hz Operation on 190/380V at Rated HP and 5/6 of 60 Hz RPM
Standards: UL Recognized (E47479), CSA Certified
*** NOTE: I INCORRECTLY LISTED THE SHAFT DIAMETER AS 7/8". THE CORRECT DIA IS 5/8" AND THIS HAS BEEN UPDATED IN THE ABOVE SPECS. ***
