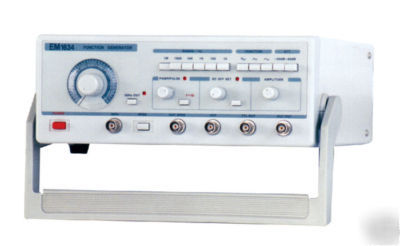

EM1634 function generator
The EM1634 can output different kinds of waveforms such as sine, square, triangle, pulse, ramp, TTL, single pulse, etc. Its signal frequency range is from 0.2MHz to 2MHz. The DC level and duty cycle of output signal is adjustable. It providces VCF function and displays the output frequency with a dial.
Sine, Square, Triangle, Pulse, Ramp, Single Pulse, TTL, 50Hz sine
5mVp-p (min) to 25Vp-p (Max) continuously variable, open circuit
+10V ~ -10V (open circuit) continuously variable, with 50%-50% calibrated SW
3Vp-p (open circuit), TR 25ns, for 20 TTL load
control frequency in 1:100
240mm(W) x 90mm(H) x 280mm(D)
* 1 cable with BNC/insulated clips terminations
