Electric hydraulic linear actuator
Push (extend) Force: 5000 lbs. min.
Pull (retract) Force: 3750 lbs. min.
Operating pressure relieved at 2500 to 3000 PSI
Rate of Travel @ Max. thrust 15 IPM
#7342 specifations (that differ from the #7050 above)
Push (Extend) Force : 3141 lbs. min.
Pull (Retract) Force: 1744 lbs. min.
Rate of Travel @ Max. thrust 37 IPM Extend, 67 IPM Retract

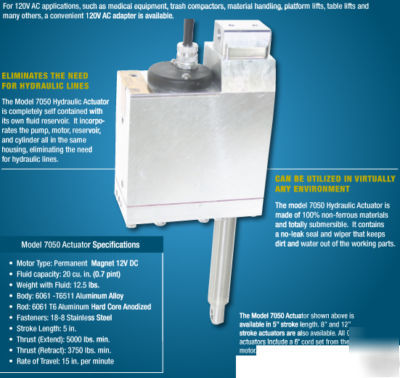

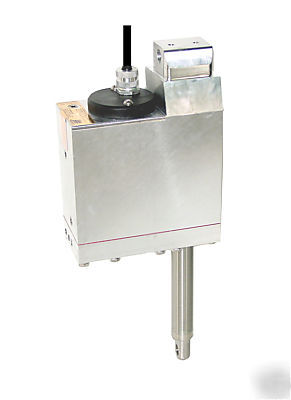

These 12V actuators are ready to run straight out of the box. They are waterproof (totally submergible) and can be utlized in almost any environment. This actuator incorporates the pump, cylinder, motor and reservoir in a complete compact unit. This eliminates the need for hydraulic hoses.
Please specify either model #7050 or #7342 when purchasing.

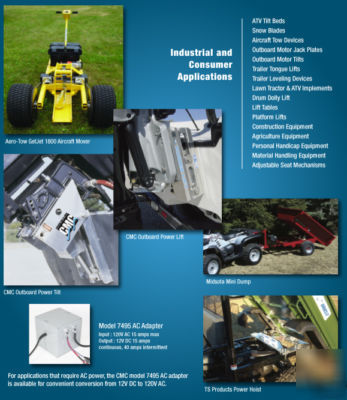

Here are just a few of the many uses:
Dump beds for utility vehicles
ATV and garden tractor attachments and implements
Wire assembly #7014 with toggle switch for control available, specify in checkout and add $80.00
This waterproof wire assembly connects to a 12V battery and includes relays and circuit breaker. It includes 16' of wire running to the switch.
