Euromac variable angle hydraulic notcher

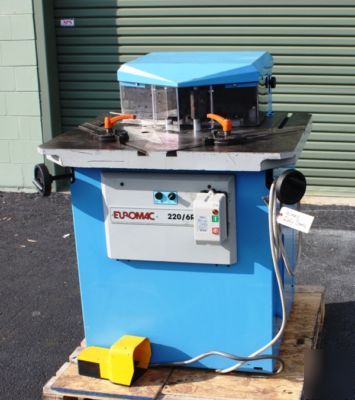

YOU ARE VIEWING A VERY NICE EUROMAC VARIABLE ANGLE NOTCHER.
THIS MACHINE CAME OUT OF A LOCAL CUSTOM FAB SHOP WHOSE OWNER HAS DECIDED
A VARIABLE ANGLE NOTCHER OF THIS CALIBER DOES NOT COME AROUND TOO OFTEN.
SPEAK TO THE MONEY PERSON IN YOUR BUSINESS OR HOME AND PUT SOME FRESH
Mild Steel w/ 60 positive blades
Mild Steel w/ 30 positive blades
Stainless Steel w/ 60 negative blades
Stainless Steel w/ 60 . negative blades
* Variable angle blades adjust between 30 and 140 . For variable angle notchers with multi attachment the angle can be changed non symmetrical individually for each side.
* Automatic blade gap adjustment (European Patent No. 1.214.004) to ensure perfect cuts in a wide variety of materials and thickness (from 1 to 6.5 mm). You eliminate the burr and the manual blade adjustment. This leads to more productivity and less time loss.
* Absolute rigidity is provided by our monoblock Meehanite steel casting ( 65kg/mm ) incorporating a heavy duty 3-guide system assures unmatched cutting precision and blade life.
* Built in lifetime lubrication of the lateral columns and central guide column reducing maintenance requirements further.
* Fixed alignment of upper and lower blades with a joint created by a hardened rod guaranteeing parallel movement of the upper and lower blade segments.
* 5 hydraulic cylinders assure blade angle position once clamped onto the blade holding segments with safety interlock to prohibit a notcher stroke while the blade segments are unclamped and movable.
* Reversible blades in HSS (high speed steel) are available in 30 and 60 with either positive cutting direction (cutting from the front edge) or negative cutting (cutting from the rear edge). This gives you the benefit of additionally longer tool life.
* You may select between single step mode or step by step mode (inching function). This allows you to easily copy reference parts or work with special applications.
* This capability is enhanced by the standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase yuour stroke rate with the shortest possible stroke for each task.
* Unlimited length trimming is possible with the position of the side guides perfectly aligned with the blades. As you feed the material along the fixture in front of the blade it is guided in line along the rear of the blade.
* A robust Macrolon sheet gives you uninhibited sight of the working area while assuring your safety from accidentally reaching into the cutting zone.
* Precise, heavy duty brass measuring scales assist you in quick set up and are still legible after years of reliable service.
* Sheet holding clamps securely hold the work piece to eliminate any torque induced movement during the cut.
