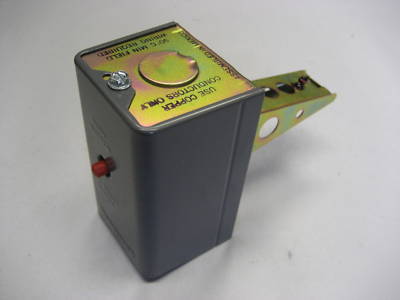

Honeywell L4029E1219 limit control that breaks on rise
Limit Control that breaks on rise with manual reset, fixed 165 F range and 3" insertion
Shuts off the fan when air temperature is indicative of fire.
Internal snap-acting switch actuated by a bimetal strip inserted directly into the air stream responds rapidly to temperature changes.
Element Insertion Length (in.)
Normally closed SPST switch opens on temperature rise to the set point. Switch must be manually reset to operate.
Switch: 190 F; Sensing Element: 350 F
Switch: 88 C; Sensing Element: 177 C
3 3/4 in. high x 2 5/16 in. wide x 2 in. deep excluding element.
95 mm high x 59 mm wide x 51 mm deep excluding element.
Listed: File No. MP466, Vol. 8, Guide No. MBPR2
