Magnetek 2 hp 220V 230V 1PH ac motor 1725 cwle odp 7/8"

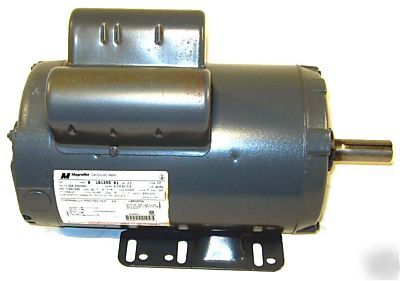

Magnetek model number 8-181255-01 AC motor. 2 HP single phase motor with R56HZ frame. Operates on 208-230 / 220 VAC (10.8A). 7/8" diameter x 2-1/4" long keyed shaft rotates at 1725/1425 RPM CCWLE (counter clockwise looking at lead end). ODP ball bearing design with 1.15 rated service factor for continuous operation. This motor has been used but is very clean. Appears just as shown in the photos.
