Pic compatible microchip ICD2 icd 2 debugger/programmer
Advanced Willem EPROM Programmer PCB50
DIP332 to PSOP44 Socket (Am29F/28F)Adapter
MCS-51+AVR+PLCC44 to DIP32 Adapter
PLCC32 to DIP28,32 Adapter(3 in 1)
Compatible Microchip PIC ICD2 ICD 2 Debugger / Programmer
PIC Compatible Microchip ICD2 Debugger and Programmer
PIC (Universal 40-PIN ZIF Socket Programming Module) Adapter
* An all-in-one debugger/programmer solution: MPLA ICD 2 is a low cost, real-time debugger and programmer for selected PIC MCUs and dsPIC DSCs. Using Microchip Technology's proprietary In-Circuit Debug functions, programs can be downloaded, executed in real time and examined in detail with the debug functions of MPLAB. Set watch variables and breakpoints from symbolic labels in C or assembly source code, and single step through C source lines or into assembly code. MPLAB ICD 2 can also be used as a development programmer for supported MCUs.
* The secret behind In Circuit Debugging is two dedicated hardware lines (microcontroller pins used only during debugging mode) that control In Circuit Serial Programming (ICSP) of the device and, afterwards, debugging through proprietary, on-chip firmware. The ICD 2 debug features are built into the microcontroller and activated by programming the debug code into the target processor. There is some shared overhead expense that includes one stack level, some general purpose file registers and a small area of program memory when in the debug mode.
** RJ-12 to 5 PINS HEADER Jack Adapter **
** PIC (Universal 40-PIN ZIF Socket Programming Module) Adapter **
If you want to supply power to "TARGET" boards from USB or DC Adapter ( none-standard ), you can open the box and close the jumper (see the picture). By default, we set standard power supply.
** NONE-STANDARD: The target boards get power from USB or DC adaper.
** STANDARD: The target boards get power from DC Adapter or their own power supply. standard info. (pdf file)

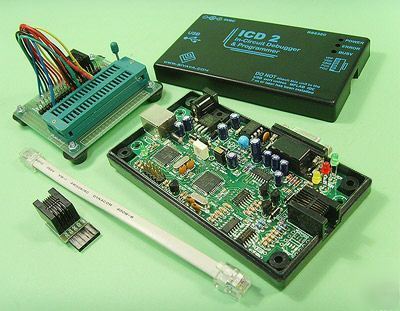

* One ++ Full Speed USB ++ Microchip ICD2/ICD 2 Debugger ~ Programmer
* One Adapter For PIC (Universal 40-PIN ZIF Socket Programming Module)
* One RJ12 Cable + RJ12 to 5 PINS HEADER Jack Adapter.
* One USB Shielded, REVISION 2.0 Cable
If you have any questions, please feel free to contact sivava email picture , we will try our best to resolve any problems you may have.
