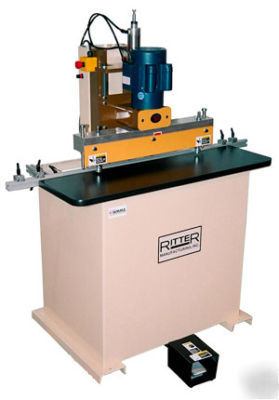

Ritter R19F 23-spindle single row line drill machine
ALL info for this machine is here: http:// /r-19f.html
* (23) Spindle steel helical gear driven drill head on 32mm centers, (12) right hand and (11) left hand spindles
* 10mm bored set screw type spindle collets, accepts 57mm to 75mm long tooling
* 3 HP, 3 phase spindle drive motor, 1725 spindle RPM
* 60 Adjustable back fence with 12 maximum offset, (4) Adjustable fence stops
* 14 x 48 Work table surface
* 3 Bore head drive cylinder, 0 to 3 drilling depth stroke
* (2) Adjustable spring hold downs, head mounted index pins, foot actuated drilling cycle, drill head guard
* Steel gear driven spindles
http://img.villagephotos.com/p/2002-10/60331/2009-326-21-14-43-0-IMG_1735.JPG
http://img.villagephotos.com/p/2002-10/60331/2009-326-21-14-43-0-IMG_1736.JPG
http://img.villagephotos.com/p/2002-10/60331/2009-326-21-14-43-0-IMG_1737.JPG
http://img.villagephotos.com/p/2002-10/60331/2009-326-21-14-40-0-IMG_1738.JPG
