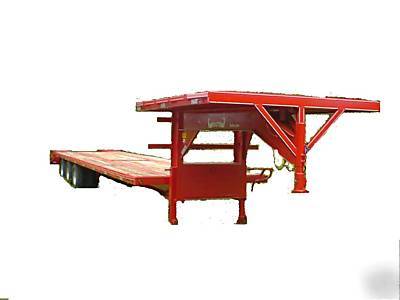

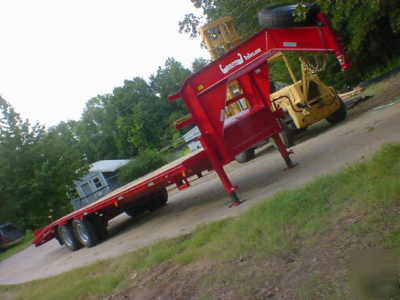

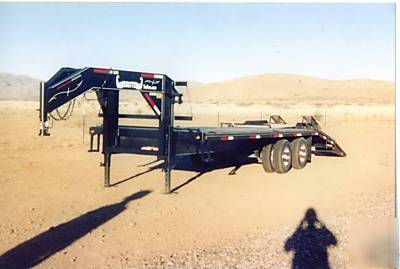

27+5 gooseneck dovetail dexter axles 25000GVW
Please allow 4 weeks build time
We manufacturer goosenecks, pintle hitches, drop decks, hydraulic dovetails, tilt decks, container trailers, sliding axle trailers and anything we or you can dream up.
All steel and components are made in North America

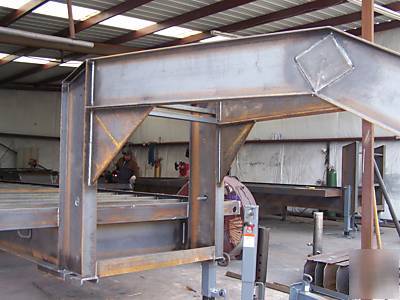

A50 Grade Ibeam 12" 19lb frame and neck 52,000psi shear strength rating
Dexter 10K axles with electric brakes, forward self adjusting.
Suspension is adjustable. (you can align it, a Brute exclusive)
Couplers are rated at 25,000lbs not the typical 20,000lb
Crossmembers are 1.5" x 3" rectangular tube not the typical 3" channel (tube is about 200% stronger)
Cap rail is 2" x 6" rectangular tubing. The also acts as a weather proof conduit for our 100% sealed wire harness
Knee bracing is standard (the steel support from bottom of Ibeam up to the cap rail (usually at 25-30 degree angle)

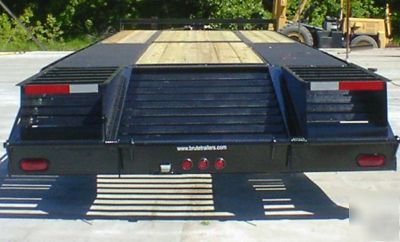

Self cleaning dovetail is spaced so that you can't walk through it

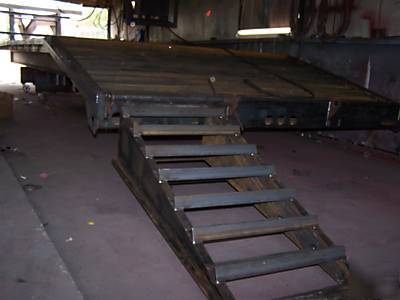

Double sprung ramps, they provide lift not only from the ground up but some (about 25%) from the dovetail up.
Rear Load jacks (keeps your truck on the ground when loading heavy items

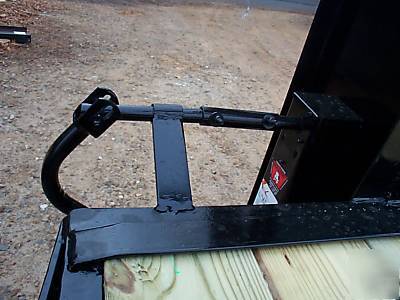

Chain keepers hold ramps down on dovetail when going down rough roads
2" x 3/8" rub rail with stake pockets on 24" centers
2 men spend 2 days smoothing down all exposed welds, makeing sure almost no B-B's are present, rounding off all corners and general prep work prior to prime and paint
Trailer is acidized with Phosphoric Acid to treat metal prior to prime and paint. Phosphoric acid changes microscopic paritcles of rust into ferric oxide to minimize rust forming later on.
All prime and paint is done before decking. There is 100% prime and paint coverage no drop outs, even in the hidden areas
Priming is done with a Red Oxide (super rust inhibiting) primer
Painting is done with an automotive base 2 part hardner/basecoat paint (As opposed to regular $11/gallon trailer paint ours is $80/gallon) OUr paint is a 4-6 year gloss versus 8-9 months on regualr paint. Caution be very leery about powder coated trailers, there is a reason automobile manufacturers don't powder coat anything on a car. We will never go the cheap route on our finishes.
Trailers are FOB Factory, but delivery is available nationwide (we don't go into Canada, but can meeet you at the border)
