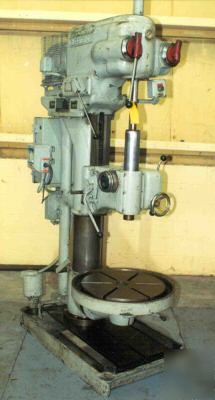

30" cleereman heavy duty single spindle drill, #30C596
30" CLEEREMAN HEAVY DUTY SINGLE SPINDLE DRILL
SERIAL ...................................... 30C596
DEPTH OF THROAT ............................. 15
DIAMETER OF TABLE ........................... 22
SPINDLE SPEEDS .............................. (12) 75 TO 1500 RPM
FEEDS ....................................... (9) .005 TO .045 IPM
SPINDLE TRAVEL .............................. 12
DIAMETER OF SPINDLE ......................... 4
TAPER IN SPINDLE ............................ #4 MT
AREA OF BASE ................................ 24 X 23
TRAVEL OF HEAD ON COLUMN .................... 14
TRAVEL OF TABLE ON COLUMN ................... 12
DISTANCE SPINDLE TO TABLE ................... 0 MINIMUM, 30 MAXIMUM
DISTANCE SPINDLE TO BASE .................... 34 MINIMUM, 48 MAXIMUM
TABLE SWIVELS RIGHT OR LEFT ................. 45 DEGREES
SWING AWAY TABLE ............................ YES
SPINDLE FORWARD & REVERSE ................... YES
MOTOR ....................................... 7-1/2 HORSEPOWER MAIN DRIVE MOTOR
