#415-16 cincinnati vertical mill

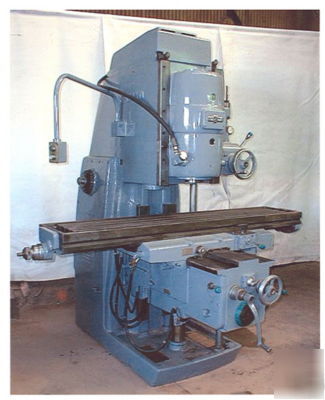

#415-16 CINCINNATI Vertical Mill, S/N 11A4V5SE-4, New 1966
Table working surface 79 x 16
Table overall size 79 x 16
Longitudinal travel of table 42
Min/Max. Spindle nose to table top 0 -22 1/8
Throat distance, centerline of spindle to column 18
24 Spindle speeds from 16 to 1600 RPM & From 40 to 3000 RPM
32 Longitudinal & Cross feeds from to 60 IPM
32 Vertical Feeds from to 30 IPM
Rapid traverse, Longitudinal & cross 150 IPM
Rapid traverse, Vertical 75 IPM
