> (6) 3/4" pillow block bearing UCP204-12

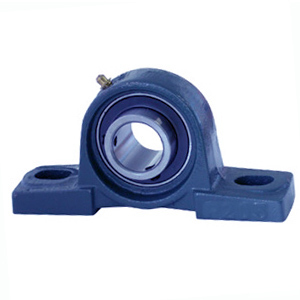

(6) 3/4" pillow block bearing UCP204-12
Set-screw Insert w/ Pillow block housing
Bore-3/4", h-1-3/16", a -5", W - 2-3/8", e - 3-3/4"
The UCP204-12 3/4" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP204-12 3/4" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UCP204-12 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCP204-12 3/4" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
Also, you can download our full
