Ab 1492-FB1C30-l 30 a flip up fuse holder process cc

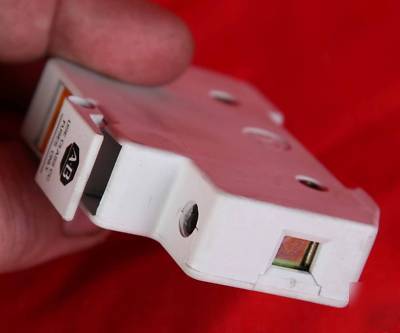

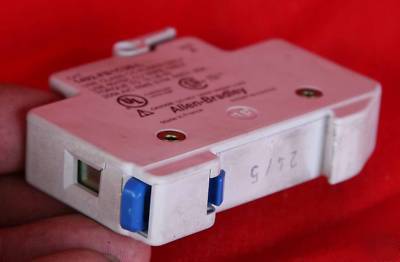

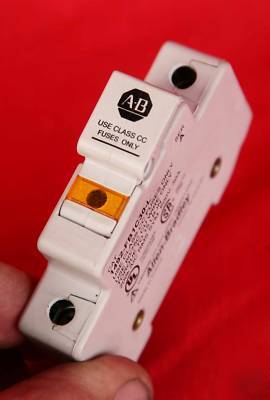

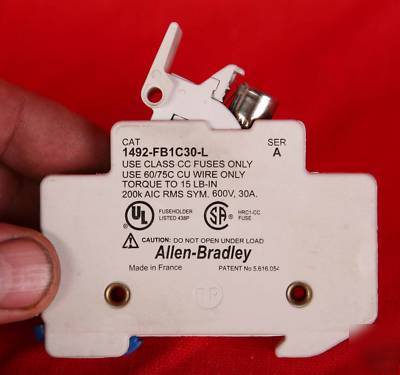

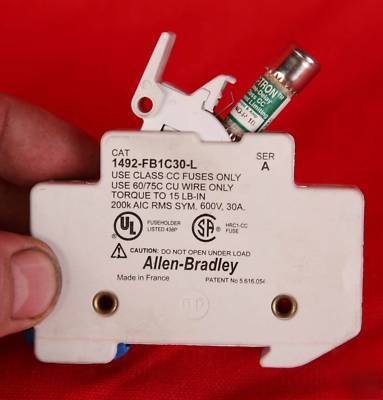

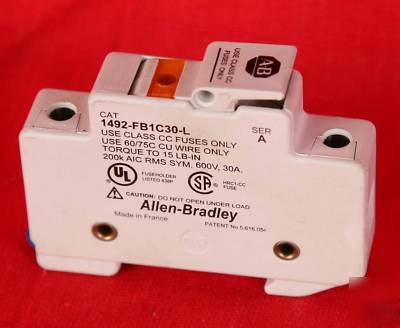

For Sale is a used, Allen-Bradley Fuse holder, class CC, Made in France by Allen-Bradley. Unit sells as shown in pictures. Save Big $$$$$
This Fuse holder was part of a prototype model and was used for approx one hour then the prototype model line was shut down .
Bulletin 1492-FB DIN Rail Mounting Fuse Holders
* Compact size requiring less panel space than open-style fuse holders
* Handle isolates the fuse from power when installing or removing fuse
* IP2 Front-finger protection per IEC/EN 60529
* Optional blown fuse indicators allow easy troubleshooting of electrical circuits
* Easy insertion/removal of fuses, no special tools required
* Mounts on standard 35 mm DIN Rail
Bulletin 1492-FB fuse holders provide a safe and convenient means for installation of class CC, J, and midget fuses. The class CC fuse holder is designed to reject a midget fuse or international 10 x 38 mm fuse. The class J fuse holder will reject all fuses other than a class J fuse.
The class CC and J holders are UL Listed and CSA Certified for branch circuit protection. Class CC and J fuses are excellent for wire protection, small motor loads, and group protection of small motor loads. The midget holders are UL Recognized and CSA Certified when supplementary (1-1/2 in. x 13/32 in.) fuses are applied. The midget fuse holder is also CE Marked for 10 x 38 mm IEC midget fuses.
The 1492-FB fuse holder family is designed for use in many OEM applications, such as power supplies, equipment protection, primary and secondary control transformers, solenoids, lighting and heater loads, and drives.
1-Pole Fuse Block with Indication
1-Pole Fuse Block with Indication, 12 72V AC/DC
2-Pole Fuse Block with Indication
3-Pole Fuse Block with Indication
Dimensions are in inches (millimeters). Dimensions are not intended to be used for manufacturing purposes.
Click to enlarge - 1492-FB1M30-L_r-cmyk_dims
