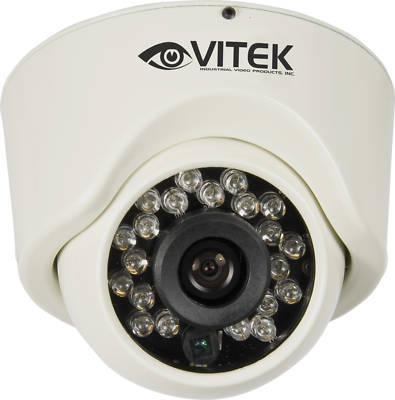

New vitek vtc-IRHCM1A infrared day/night ball camera
Infrared Day/Night Ball Camera w/480 TV Lines
-1/3" Color CCD with 480 TV of Lines Resolution
-21 Infrared LEDs enable Viewing in Total Darkness up to 50 feet
-True Day/Night Operation with Automatic Removable IR Cut Filter
-Heavy Duty Vandal Resistant Aluminum Construction
-12V DC Low COnsumption Power Input
-Standard 4mm Lens Included. Accepts optional 6, 8, 12 and 16mm Lenses.
Specifications: Pick up Element: 1/3 Color CCD image sensor Effective Pixels: 771 x 492 Resolution: 480 TV Lines Minimum lllumination: 0 Lux (IR On) / 0.5 Lux @ f2.0 (IR Off) S/N Ratio: More than 48dB(AGC off) Electronic Shutter: 1/60 to 1/100,000 sec. Gamma: 0.45 Iris Mode: AES White Balance: AWB Video Output: 1.0 Vp-p composite, 75 Ohm Lens: Standard 4mm (6mm, 8mm, 12mm Optional) BLC: Auto IR LED: 18 850nm IR LED s Storage Temperature: -22 ~140 F (-30 ~60 C) Operation Temperature: 14 ~122 F (-10 ~50 C) Power Source: 12VDC 10% Power Consumption: 90 mA (IR Off) / 270 mA (IR On) Weight: 9.88 oz. / 280g
