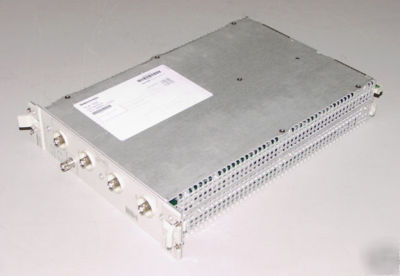

Tektronix TLA7D2 2.5 gs/s oscilloscope TLA704 TLA711
TEKTRONIX TLA7D2 2.5 GS/S OSCILLOSCOPE TLA704 TLA711
The Tektronix TLA7D2 oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TLA7D2 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
* Simultaneous Maximum Sampling Rate/ch: 2.5 GSa/s
* One ch. only max. sampling rate: 2.5 GSa/s
* Max. Record Length: 15000 pt/sec
* Min. Vertical Sensitivity: 10 mV/div
* Maximum Vertical Sensitivity: 100 V/div
* Input Impedance (alternate): 50 Ohm
* Input Coupling: AC,DC,GND
* Maximum Input Voltage: 300 Vrms
* Timebase accuracy: 0.01 %
* Trigger Modes: Auto,Edge,Glitch,Normal,Pulse
* Minimum Glitch Trigger: 2 ns
