Topcon gpt-9003A 3" robotic system w.fc-200 datacontrl

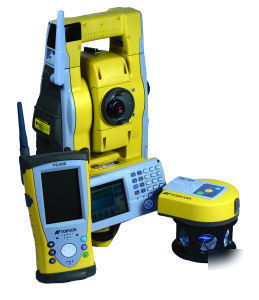

Topcon GPT-9003A 3" (Reflectorless) Robotic System with FC-200 Data Controller (NO FCC License required!)
Demo unit in excellent condition ONE-MAN OPERATION system
I. The GPT-9003A is item #60428 Topcon GPT-9003A (3 sec.) Reflectorless Servo Total Station with Auto Tracking
Retail price $27,295 Our Price 12,550
II. FC-200 512MB Controller/Radio Robotic Kit. is item #60505 S/N 5R2118 Age 6/2008
Retail price $10,150.00 Our Price 7,195
#60515 FC-200 w/ TopSurv Complete Serial #5R2118, #60434 RS-1 Radio Serial, #5S0335, #60430 RC-3 System,
RC-3R Remote Serial #5U1253, RC-3H Handle Serial , #60446 A6R 360 Prism, #60516 Rod Bracket for FC-200,
#60218 Carbon Fiber Robotic Pole, #59010 TP-10 Wood Tripod
$37,445.00 OUR PRICE (TOTAL) $19,745.00
Fast, Reliable, Smaller, Lighter
Reflectorless Measurement to 6,500 feet (2000 meters)

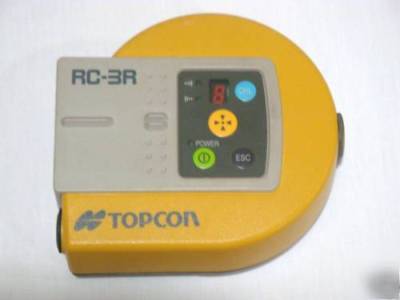

RC-3R has 1-Touch 'X-TRAC ' Quick Lock Technology
Integrated Interference Free 2.4 GHz SpSp Robotic Data Communications
6-Channel Selections for Radio Communication
Full-Color, Grpahical Windows Moblie Instrument and Field Controller Interface
FC-200 Data Controller with Windows Mobile PC 5.0
Standard Rechargeable Batteries
Waterproof - Dustproof Design
Specifications (as listed by the manufacturer):
3 seconds (Initial 4.0 seconds)
1.2 seconds (Initial 3.0 seconds)
0.5 seconds (Initial 2.5 seconds)
1.5 - 6 sec. (Init. 6 - 8 sec)
Liquid surface reflective profile
85 deg / second (Horizontal / Vertical)
2MB (Flash ROM) + 64MB (SD Card)
(A portion is used for pre-installed programs
and data management functions)
320 x 240 (QVGA) dots Graphic LCD TFT color display with
back lights and touch panel function. Single Display (2nd display: Option)
USB Type Mini-B for ActiveSync
Class II (FDA/BHR 21 CFR 1040)
IP54 (Based on standard IEC60529)
On-Board Lithium-Ion Battery - BT-65Q
(This battery does not contain mercury)
Maximum Operating Time at 20deg. C
Approx. 4 hours (with SS radio: 3 hours)

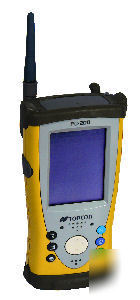

FC-200 Data Controller Specifications:
3.7" ~ 240 x 320 QVGA ~ Color TFT Transflective Type
1 x Type I / Type II (Memory and IO)
Spread Spectrum Radio (Option)
Operating: -20 deg. C to 50 deg. C
Storage: -30 deg. C to 60 deg. C
GTS-900A / GPT-9000A: 16.4 ft - 1312 ft
Protection Against Water & Dust
