Conduit /pipe bending calculator offsets electricians
Welcome to Piggyhug's mudhole. Have you hugged a pig lately?
Please read all of listing, most questions will be answered.
For a quick view of all my listings, be sure to visit my store here. piggyhug's store

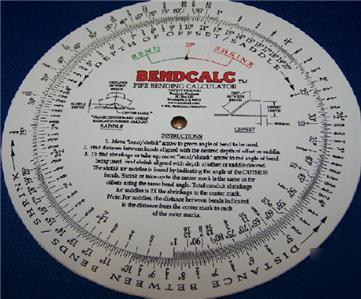

Presenting a powerless (no batteries or electricity) pipe / conduit calculator. This is great for offsets, 4 and 3 bend saddles with no head scratching involved. Shrink is also determined.
Works with any type pipe bender (hand or powered) and conduit size.
Also great for matching offsets perfect every time.
To make offsets, two of three factors are needed.
With the Bend calc, dial in two of the factors and the third will be shown (just like ohm's law). This is what makes it great for matching offsets.
With existing offsets, amount of offset and distance between bends can be easily measured. Dial these 2 factors in and the angle of bend will be given.
For new offsets, dial in degree of bend and amount of offset desired, distance between bends is shown.
dial in amount of offset and distance between bends desired, degree of bend will be shown. This is great for tight spots where common degrees can't be used. No more guessing what degree to bend on.
4 bend saddles is just 2 offsets back to back and same principle applies.
3 bend saddles 2 factors are needed, distance from coupling to center obstruction and height. Bending Calc will determine distance between bends and amount of shrink to add.
Shrink is also determined by dialing in degree and amount of offset.
Comes with instructions and illustrations. With a little practice the calculator will become second nature and you will wonder how you got along with out it.
I use this personally and have been an electrician since 1991. This is one of the best conveniences I have ran across. Description is from my personal experience with the bending calculator and from the instructions.
Be sure to check out no dog levels in my other listings.
Feel free to ask any questions before purchase. This calculator has a learning curve to it, I will be happy to entertain questions after the sale as well. Took me a little time to catch on, but after I did it is one of the best tools in the tool box.
USA 1st class-typically with in a business week
1st class parcel (heavier items)-allow at least 10 business days
priority-typically with in 4 business days
We strive to give the very best service and to offer quality products to make life easier.
Encourage questions and answer daily.
