Cree xlamp mc-e cool white emitter led 650LM - m bin

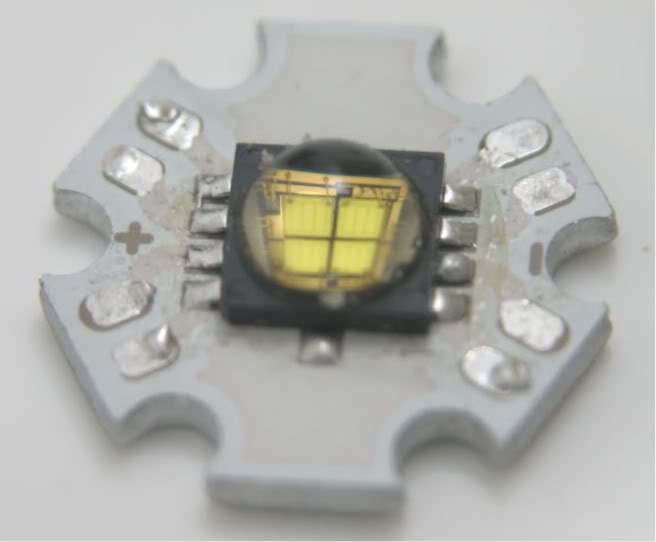

Cree XLamp MC-E Cool White Emitter LED 700mA 650lm - M Bin
Cree XLamp MC-E LED is a lighting-class multi-chip LED that provides four times the flux of the XLamp XR-E LED in the same footprint. XLamp MC-E LEDs can reduce LED system complexity by reducing the number of components required.
Cree XLamp LEDs bring high performance and quality of light to a wide range of lighting applications, including color-changing lighting, portable and personal lighting, outdoor lighting, indoor directional lighting, commercial lighting and emergency-vehicle lighting.
Industry s first lighting-class multi-chip LED
Available in white (2,600 K to 10,000 K CCT)
Maximum drive current: 700 mA per LED die
Lowest XLamp thermal resistance: 3 C/W
Electrically neutral thermal path
New 4-Chip LED by CREE with phenomenal light output and minimum dimensions! Due to its 8-Pin-Technology every pin can be driven individually, max. current consumption 700 mA per Chip. At 700mA the average luminous flux is approx. 650 lumen by connecting all 4 chips in series.
Color temperature (typ.): 5000K to 10000K
Measurement: L x B x H: 7,50 x 7,00 x 4,48 mm
Luminous flux by connecting all 4 chips in series:
Forward voltage typ.: 3,2V at 350mA - 3,4V at 700mA
Please ensure a sufficient cooling !
This LED can only be operated with an additional heat sink
Caution: The MCPCB can get very hot (~70 C).
Device failure caused by overheating voids warranty !
