Dukane 410 series ultrasonic wedling system

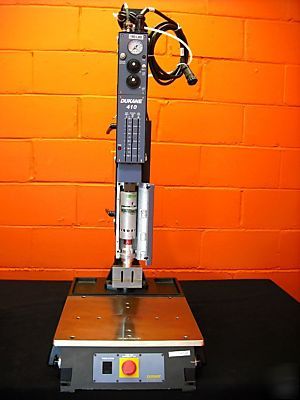

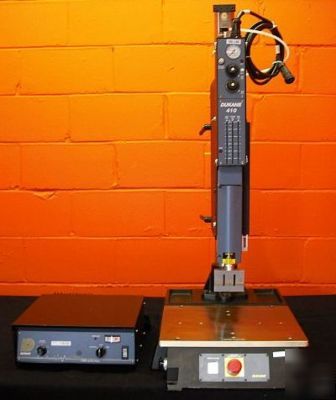

Dukane 410 Series Ultrasonic Welding System
Dukane is a global provider of plastic welders for the welding of thermoplastic materials. This 410 Series System comes from a lab environment and is in excellent condition. It will meet all your welding needs for years to come.
* Narrow 3 1/8" (79mm) profile for close centre-to-centre distances in multi-head and automation installations
* Dual pressure increases clamp force to improve melt during the weld cycle, or to provide tighter assembly during the hold cycle
* Force transducer (load cell)
* 4" (102mm) stroke with mechanical bottom stop adjustable in .001" (.025mm) increments
* Hydraulic slow speed available for precise, repeatable control of horn travel during the weld cycle
* Easy to use front panel position indicators with universal icons instantly show setting of position and bottom stop and optional slow speed, pre-trigger and end-of-weld switches
* Status indicators in base for Power, In Cycle and Abort clearly communicate system conditions

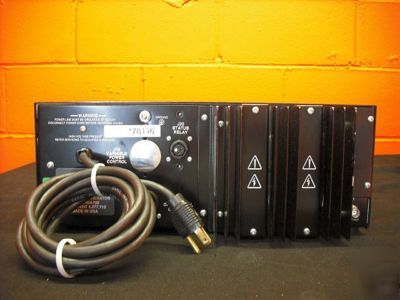

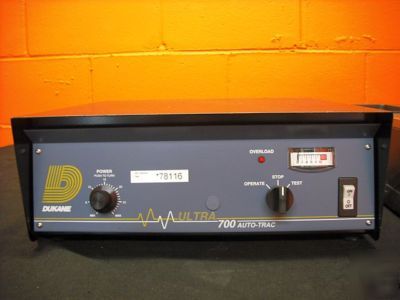

* 40A700 Generator (Ultra 700 Auto-Trac)
