Innovative technology NV9 bill acceptor validator

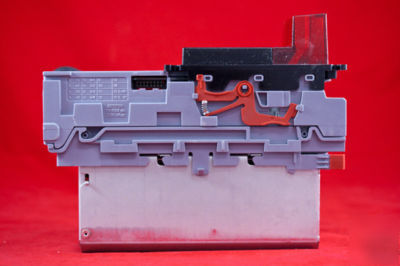

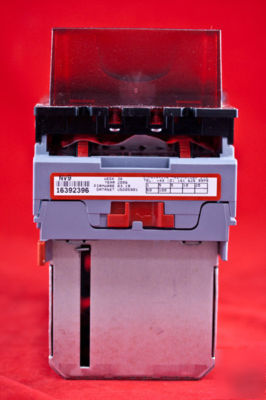

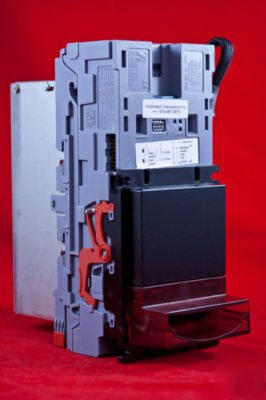

Innovative Technology NV9 Bill Acceptor Validator
Please note: These units are currently not programmed for US Dollars and will need to be reprogrammed.
Designed to increase profitability on all types of automatic Machines:
* Direct replacement for NV7 - same dimensions, connections and communication protocols.
* New arm processor with 0.5Mbyte FLASH memory, allowing multiple currencies in all four note orientations.
* Currency database for many countries available free over the internet. Currency and firmware programming via PC
* Simple to interface - including parallel, pulse, SSP (Smiley Secure Protocol), CCTalk, MDB, and more.
* Single note escrow function.
* Kevlar lined belts to drive the bank notes right through to the cashbox.
* Best value: Easy to fit, simple to service and designed for a long life
* New advanced florescence detector to reveal hidden security features.
* Horizontal mounting for gaming and amusement applications. Vertical vending bezel to suit many popular designs of vending machines.
Dimensions: 100mm(L) x 220mm(H) x 139mm(W) (vertical mounting with 300 note cash box)
Power supply: 12Vdc (MDB version: min. 18 ~ max 42 V)
Input: 350mA at rest, 1 A during acceptance, 1.2 A with stacker in process
Operating temperature: +3 ~ +50
Acceptance speed: 3 ~ 6 seconds
