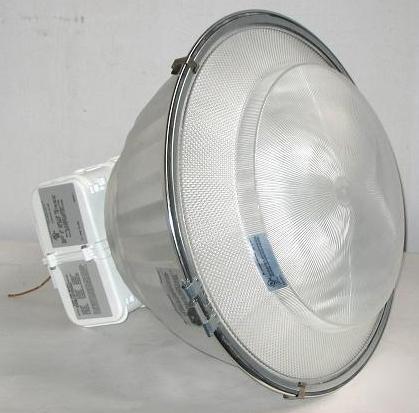

Lithonia tx A20 175W hid hibay acrylic lighting fixture
LITHONIA TX A20 175W HID HIBAY acrylic lighting fixture
* Intended Use: For areas that require good vertical illumination with excellent glare control at low mounting heights. Ideal for general open areas, retail spaces, aisles and manufacturing areas. Certain airborne contaminants can diminish integrity of acrylic. Consult Acrylic Environmental Compatibility chart for suitability of application.
* Features: Housing Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing for cooler operation.
* Ballast 100% factory tested. High power factor ballast with a minimum of class H insulation.
* Optics Injection-molded virgin acrylic lens, fully fluted anodized aluminum reflector. Hinge and lens retainer latches facilitate tool-less removal for maintenance and cleaning. Totally enclosed, gasketed refractor and reflector inhibit the entrance of ambient contaminants. All distribution patterns are widespread.
* Socket Glazed porcelain, vertically oriented, mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse-rated.
* Installation Pendant splice box threaded for conduit (standard).
ENCLOSED ALUMINUM OPTICAL, 175 MH W/ DROP ACRYLIC LENS
ONE 175-WATT CLEAR BT-28 METAL HALIDE, VERTICAL BASE UP POSITION.
Product: PREMIUM ENCLOSED ALUMINUM OPTICAL
