New robbins scientific 400 hybridization incubator oven
NEW ROBBINS SCIENTIFIC 400 HYBRIDIZATION INCUBATOR OVEN

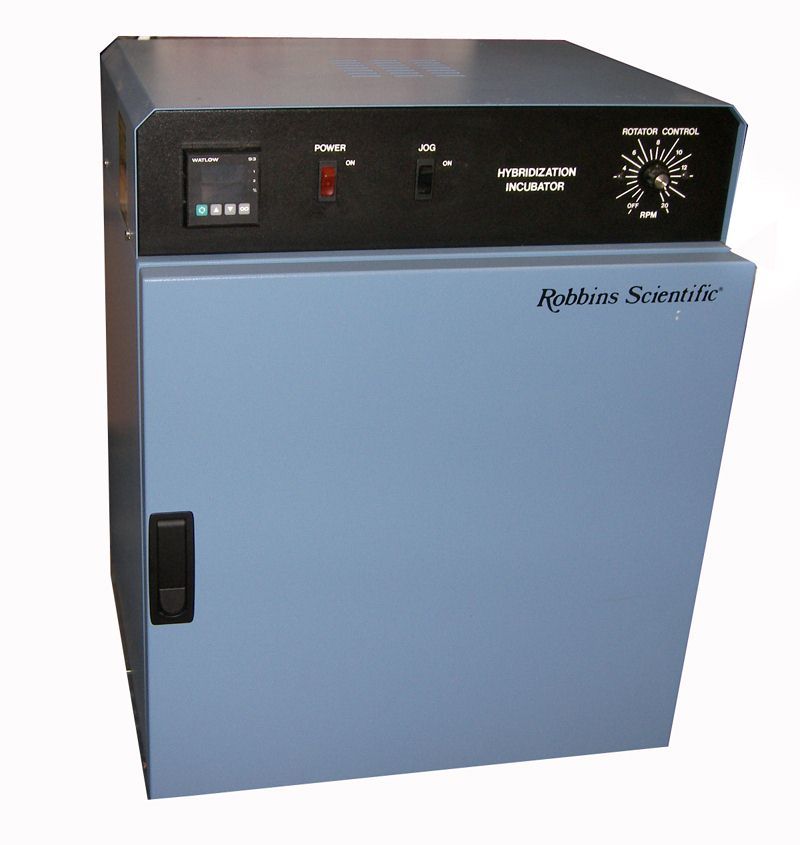

Robbins Scientific Hybridization Incubator Oven
With Rotor, Power Card Accessories
Since the introduction in 1989 of hybridization incubators by Robbinss Scientific, thousands of laboratories worldwide perform membrane hybridizations using these simple and versatile instruments. SciGene continues the Robbins tradition of quality by offering these same thoughtfully designed and manufactured systems.
Precisely Controlled Mixing Rotation for Efficient Hybridization
The Model 400 Hybridization Incubator is uniquely designed with a passive heating system to provide precisely controlled temperatures within the incubator chamber. Sturdy rubber strips with embedded heating wires surround and heat the stainless steel chamber. The resulting warm air within the chamber is then circulated through movement of the rotator to ensure temperature uniformity. A precision controller regulates the temperature to 0.10 C and displays both set and actual temperatures simultaneously. Lastly, an external jack connected to a probe within the chamber can be attached to a digital thermometer for temperature calibration and instrument certification.
Special attention has been given to the design of the incubator chamber and door to ensure an airtight and watertight environment. The completely stainless steel interior is constructed without seams along the bottom to prevent solution leakage in the event of a spill. A removable stainless steel pan is also provided
for easy cleanup of minor spills. The heavy duty, dual paned, tempered glass door has a seamless, rubber gasket and levered latching system to prevent the escape of heated air from the chamber. As an added safety feature, all SciGene incubators come with thick-walled, borosilicate glass tubes that resist breakage and provide effective radioisotope shielding. A specially designed cap made of extremely durable PBT plastic with an integral silicone o-ring provides a reliable, long-lasting seal.
An exclusive feature found on all SciGene hybridization incubators is the use of a rotator that holds the tubes tilted and offset from the axle. The geometry of the system results in movement of the probe solution from one end of the tube to the other as rotation occurs. The resulting rigorous washing action allows the use of only a few milliliters of labeled probe solution for greater hybridization efficiency and eliminates the need for messy separating meshes. The speed of end-to-end movement of the probe is regulated by a rotary dial which adjusts the rotator speed from 2 to 20 RPM. To conveniently position the rotator for adding and removing tubes, a jog switch can be pressed to momentarily move the rotator when the door is open. Rotators and Accessories for a Multitude of Samples and Uses The Model 400 Incubator comes standard with a rotator that holds ten long (300 mm) or twenty short (150 mm) tubes along with one long glass tube with cap. Additional glass tubes and caps can be purchased separately. Five optional rotators and a rocking platform are also offered for special applications. For long transfer membranes, a rotator that holds six large, 75 300mm bottles is available. Three additional special rotators are available that hold 80x50mL, 200x15mL or 400x1.5mL capped tubes. For heating and rotating commonly used containers and racks, a general purpose rotator is available where items are secured to a rotating platform using springs and clamps. Lastly, a removable, variable speed rocking platform for heating and mixing solutions is also available.
* Tube Capacity 10 35x300mm / 20 35x150mm 6 75x300mm
* Temperature Range/ Precision: Ambient +5 to 99 C ( 0.10 C)
* Rotator Speed 2 to 20 rpm
* Dimensions Exterior: 17.5x15.5x20 inches (44.5x39.5x56.0cm)
* Chamber: 14.0x14.0x14.0 inches (35.5x35.5x35.5cm)
* Weight (without Rotator) 75 lbs. (34kg)
