Smartpro X8 usb universal programmer
SmartPRO X8 exclusive feature saves you time, frustration, and money.
Programs high-density flash memory devices at near theoretical minimum programming time.
Design for versatile multi-applications: You have freedom to choose the optimum mode for your programming demands.
* Auto mass-program : The unique "Auto-Sense" function will sense the inserted device and program the device properly without touching any key..
* Stand PC hosted operation for R&D and engineering.
* ICP download mode: Smart X8 directly supports in-circuit programming using a dedicated ICP connector and an included cable. ICP mode is ideal for design engineering and low-volume production.
Flexible, Reliable Support for the Latest Devices and Packages
Support over 10000 devices with low voltage devices down to 1.8V(Vdd). Most of programmable devices in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA package types can be programmed on a default DIP48 socket or through an appropriate ADAPTER/CONVERTER.
* Includes high speed CPU and high-speed FPGA driven hardware for ultra-fast programming.
* Use the USB2.0 port to connect to PC: A faster, more reliable communications interface between the programmer and the host PC.
Wide IC Coverage: Low-voltage programming supports voltages down to 1.8V allowing you to program the newest devices on the market.
High Reliability: Self-Test system check hardware status any time.
Continuity Test: Pin continuity and wrong chip insertion check prevent chips from accident damage.
Software designed with you in mind Get to work immediately
The programming software's easy-to-use graphical interface eliminates your learning curve you don't need the manual! Friendly operation interface combines many powerful functions with ease to use.
Project manager save option : project minimizes the whole process of device selection, file loading, device configuration setting, operation option etc. to a single step.
Device Check: Give a warning automatically according to the actual ID read when a mistake type is selected.
CRC Verify: File CRC check and detect large file offset automatically.
Algorithm Updates: SmartPRO X8 provides universal, highly flexible device programming support for today's memory, microcontroller and logic devices from all the major manufacture. We release new device support software from our web site weekly.
Includes high speed CPU and High-speed FPGA driven hardware for ultra-fast programming.
Calibration: automatic self-calibration
Diagnostics: pin continuity test, RAM, ROM, CPU, pin drivers, power supply, communications, cable, calibration verification timing
Requirements: Windows NT/2000/XP
Icc Range: 0~800mA? continuously programmable
Ipp Range: 0~400mA? continuously programmable
Clocks: continuously variable 1Hz~48MHz
Protection: overcurrent shutdown, power failure shutdown
Independence: pin drivers and waveform generators are fully independent and concurrent
Algorithms : Uses manufacturer approved algorithms
File Type: It can handle file in binary/machine code , Intel Hex, Techtronics, Signetics, Motorola, ASCII,MS-DOS fn. COM & EXE , DRAFT etc.
Device Supported: including, but not limited to low voltage, PROM, EPROM, EEPROM, Flash EEPROM, Microcontrollers, GAL. SRAM, TTL/CMOS device test.
S/W update: Virtually supports you, and free life-time software updates are available!

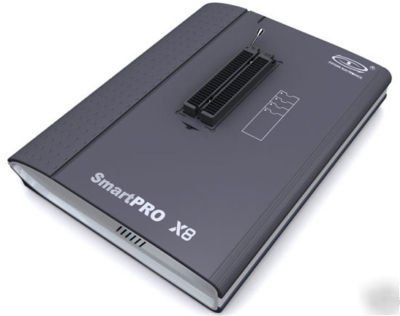

SmartPRO X8 universal programmer
sure the item is in the original condition!
SKYPE: domain668 MSN: ****@hotmail.com ICQ:352605336
For more information about our products,please feel free to contact us.
