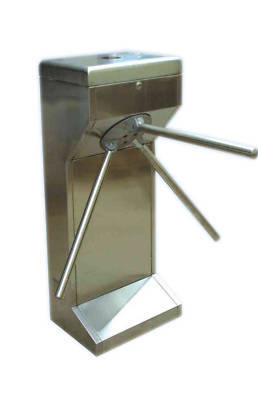

Tripod turnstiles access control barrier gates
Global KeyAccess tripod turnstiles access control barrier gate is a dual-directional controlled facility for high flow passage. It can be controlled by access controller, keypad access controller, push button etc.
Widely applieed to shopping mall, railway station, subway, pedestrian passage etc.
Material:1.5mm 304# stainless steel , brushed finishing or polished( mirror surface )
Power input: AC220V 50Hz or AC110V 50-60Hz
Main board power input: 12VAC & 18VAC
Electromotor power consumption: 24VDC
Electromagnetic power consumption: 24VDC
Other circuit board power consumption: 12VDC
Working temperature:-30 -60 /-22 - +140
1. Top LCD direction indicator.
2. Bi-directional function( could enter from both end ).
3. Fail safe, which means the arm will drop down when power off (or fail secure, which means the arm will be locked when power off ) .
4. Anti-clamping, which means the arm will be unlocked if a people hold the arm when (s)he is passing through.
5. Anti tail-after detector ( custom made, it need add a pair of infrared detector inside the cabinet on both end so it can detect illegal invasion on both end ), notice this function is not default
6. Push-button and wireless remotes ( custom made )
2. Connect with Left-open, Right-open, Com three ports.
1. Unless permission from manufacturer, the liability of equipment would be guaranteed subject to no peripherals connection and mechanical wear well grounded protected.
