Window & vent - electric motor actuator chain operated
There are many names, designs and applications given to the Electric Motor Actuator. Some are designed to only operate as fully open or fully closed. Our Motor Actuator operates between the two using a high quality chain situated inside of the actuator unit.

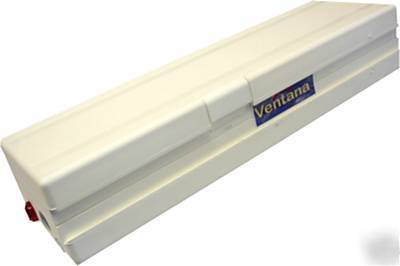

Electric Operator with chain and internal gathering, equipped with limit microswitch, removable terminal block, window closing warning light and a protection device which stops the operator in case of overload. Chain stroke (factory-set to 300mm) can be adjusted from 90 to 400mm. The chain is treated against oxidation with Dacromet coating for protection in the harshest conditions.
3. ADJUSTABLE CHAIN STROKES - From 90 to 400mm - when the chain stroke is 300mm
4. OPERATING SPEED - 40mm/Sec
5. FRONT ADJUSTMENT - Max 10mm
6. PARALLEL CONNECTION - YES
7. POWER SUPPLY - 230V AC Single Phase - 50 Hz
9. CURRENT ABSORPTION - 0,8A in AC
10. THERMAL PROTECTION - 120Celcius
14. REMOVABLE TERMINAL BOARD - YES
15. PROTECTION RATING - IP 20
16. OPERATING CYCLE - Max 7 cycles in 5 minutes
