Mogul porcelain hid light socket high pressure sodium

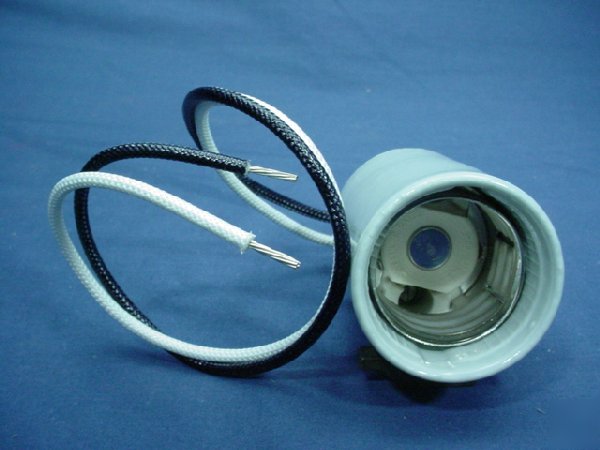

Mogul Porcelain HID Light Socket High Pressure Sodium
Leviton 8746 porcelain lampholder. Handles high pressure sodium lamps up to 1000W. This is the lampholder only and is intended for retrofit or replacement applications in existing fixtures. It does not include a ballast or enclosure. Features include:
* Rated 1500W 600V, 5kV pulse-rated
* Gray glazed with ceramic arc shield
* Copper alloy nickel plated screw shell with lamp grips
* Copper alloy nickel-plated center contact
* Socket fits Mogul base bulbs
* Dimensions: 2-1/8" diameter, 3-1/64" overall height
* 8-32 mounting screw holes; 1-3/8" center to center spacing
