New 1 bussman frs-r-150 class RK5 fuse

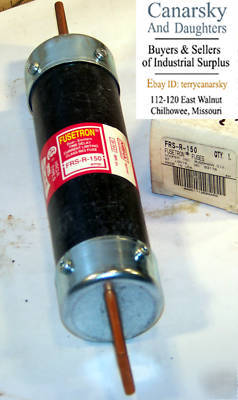

THIS LOT CONSISTS OF: 1 NEW BUSSMAN FRS-R-150 CLASS RK5 FUSE. NEW IN BOX. Time Delay Fuse, Fuse Current 150 Amps, Fuse Holder Code S, Fuse Diameter 1 13/16 Inches, Fuse Length 9 5/8 Inches, Class RK5, 600 VAC, 300 VDC, 200 KiloAmps Interrupt Rating. # 1/10 to 60A: ferrule type. 65 to 600A: blade type. Class RK5 and RK1 carry 500% of rated current for 10 sec. minimum (8 sec. for 1/2 to 30A RK1). Fiberglass bodies. Bussmann FRS R series fuses provide motor overload, ground fault and short circuit protection. When used in circuits subject to surge currents such as those caused by motors, transformers, and other inductive components, these fuses can be sized close to full load amperes to give maximum overcurrent protection. The grooved ring in the ferrule and the slot in the knife blade, when used in conjunction with special fuseholders designed to accept Class R fuses only, prevent accidental interchanging of any other fuse class. CONDITION: NEW SURPLUS. NO REASONABLE OFFER REFUSED!!
