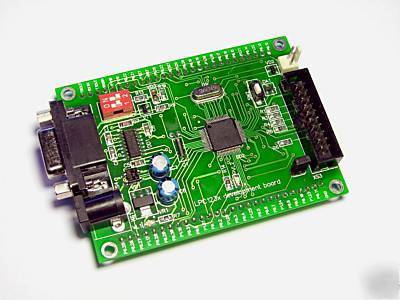

LPC2134-HB: header board with NXP Philips LPC2134 MCU
Header board for microcontrollers LPC2134- the universal board enabling easily and quickly to start to work with NXP Philips ARM microcontrollers.
* MCU: LPC2134 16/32 bit ARM7TDMI-S with 128K Bytes Program Flash, 16K Bytes RAM, RTC, 8x 10 bit ADC 2.44 uS, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 8x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
* standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG. Fully supported by wide range of ARM JTAG programmers/debuggers/emulators
* on board voltage regulator 3.3V with up to 800mA current
* single power supply: 6V..12V AC or DC required
* power supply filtering capacitor
* two channel RS232 interface
* RESET circuit with exterman control of Philips ISP utility via RS232
* DBG jumper for JTAG enable
* BSL jumper for bootloader enable
* JRST jumper for enable/disable external RESET vontrol by RS232
* 14.7456 Mhz crystal, allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
* 32768 Hz crystal and RTC backup battery connector
* extension headers for all uC ports
* PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen top side component print
* space between the pin rows: 50.8 mm (2")
* PCB components placements
* LPC2000 Flash utility - free software for programming NXP MCU's via COM port
