Vestil single scissor lift & tilt table uni-2448-4
Vestil Single Scissor Lift & Tilt Table UNI-2448-4
Single Scissor Lift & Tilt (Uni-Tilt)
Single Scissor Lift & Tilt Table

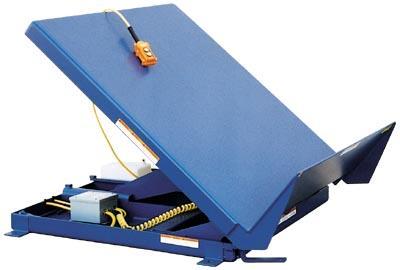

unitilt2.gif (19356 bytes)Designed to position containers within reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. A selector pedal allows the operator to lift while tilting or tilt then lift. 2HP AC power unit with hand pendant control is standard 208-230/460V, 3PH. Standard features include: integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve and independent oil return and an adjustable upward travel limit switch.
Other Single Scissor Lift & Tilt (Uni-Tilt) Available
* Suffix -YEL indicates painted yellow.
Now you can transport your tilter from workstation to workstation quickly and easily with a fork truck. Designed to position containers within reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. A selector pedal allows the operator to lift while tilting or tilt then lift. 2HP AC power unit with hand pendant control is standard 208-230/460V, 3PH. Features the same standard features as our original Single Scissor Lift and Tilt Table above.
Uni-Tilt AC Powered with Fork Pocket Portability
Click the above for Approval Drawing PDF. Click the for Parts List PDF. (If you have trouble viewing the PDF in the browser, try "right clicking" the icon and clicking "save target as" to save the PDF to your preferred location.)
