300MMOD large core toroidal transformer winding machine
Coil Wind Toroidal Power Transformer Winding Machine

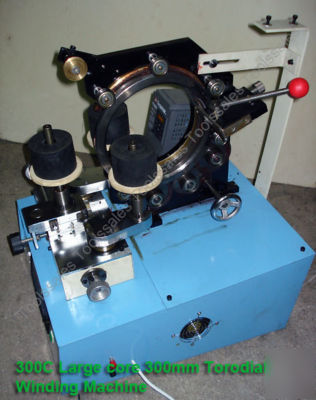

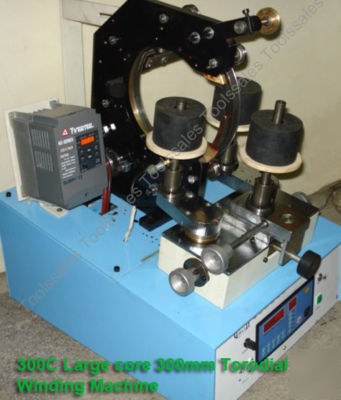

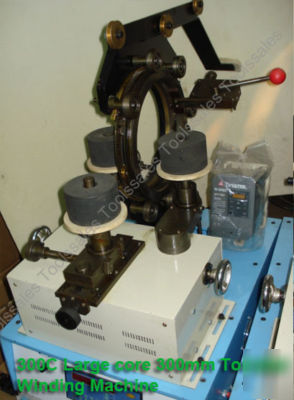

Toroidal Transformer winding Machine
300C Winding machine specification:
1. Input Power 220V/50/60Hz AC
2. Main Axis rotation speed: 20-60rev/mins
3. Dual Speed control, core and gear head motor using VFD for independent speed control adjustment for layer winding.
4. 15 group winding setting memory onboard computer.
5. Automatic stop, wire loading automatic start
6. LED display. Modular design controller for easy field swapping service.
7. Simple/direct interface control.
8. Wire size: 0.5-3.5mm (0.02 0.15 )
9. Layer winding with adjustable lay down width.
10. Maximum core size: 300mm/11.8 OD (max) , 60mm/2.35 ID ( min), 120mm/4.75 ( height).
11. Motor: 3 phase 750W/220V 1400 RPM.
we also have Taping Machine sell separately. $1975.00
Please email us for additional information.
