5x 3W White High Power LED Light + 5x 3V-9V Driver DIY

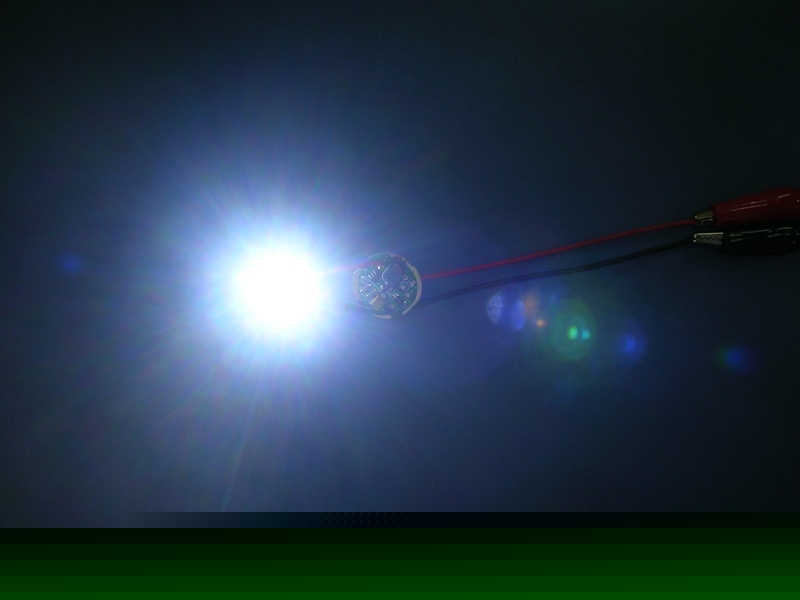

These are a brand new 3Watt High Power Bright White LED and drivers. Ideal for making light sources for video camera, fish tank, car, pool and RC Toys.
The LED drivers can be built-in on top of the heat-plate to keep the LED cooler and last longer. If installed it with a LED lens, the beam can shoot long!
Specification for 3w white led:
DC Forward Voltage (VF): 3.2 ~ 3.8 Vdc
DC Forward Current (IF): Typ 750mA
Intensity Luminous (Iv): 120 ~ 150 LM
note: About the driver, the red wire is positive to connect LED and the black wire is negative to connect LED. On the back of the driver, there is a green circle, the inner circle is positive and the outside circle is negative.you can solder two wires from and connect to the power supply.
Are you looking for more, please feel free to contact us.
