Curtis model et-103 electronic throttle 1/ea
CURTIS MODEL ET-103 ELECTRONIC THROTTLE 1/EA

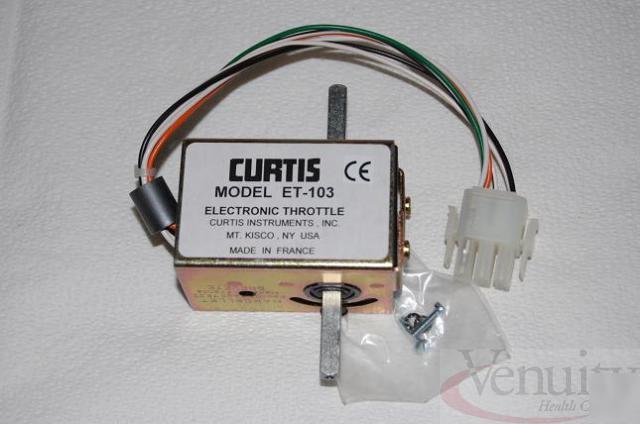

This listing is for 1 Curtis Model ET-103 Electronic Throttle.
* Hall effect technology and solid state contactor drivers provides higher reliability.
* Symmetrical throttle response in both forward and reverse directions.
* Solid state MOSFET drivers for forward and reverse contactors.
* Minimal deadband areas at both zero and full throttle positions.
* Environmental protection of major components through an expoxy layer over the circuit board.
* Throttle output range: 0 to 5 Volts
* Maximum throttle output: 5.3 Volts
* Minimum throttle output: 0 Volts
* Maximum deadband at zero throttle:10 degrees
* Maximum deadband at full throttle:10 degrees
* Forward/Reverse current: 1.5 amp max and 20Ma minimum
* Symmetrical throttle response in both directions
* The Model ET103 has an operating voltage range of 13 to 46 Volts DC.
