Exfo iq 1203 4 channel power meter

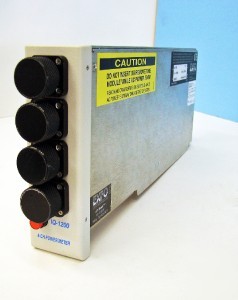

EXFO IQ-1203 4 Channel Power Meter Module
Manufacturer: EXFOModel IQ-1203Version P-2.5Working Condition: Excellent
Warranty: 7 Day Warranty, Guaranteed Not DOA Condition DescriptionThis Module is in excellent working conditions and has been fully tested for complete functionality. Manufacture DescriptionThe IQ- 1203 is a four independent channel sensitive and accurate optical power meter. It is designed for laboratory and industry applications using the IQ-203 Optical Test System mainframe (or IQ-206 Expansion Unit). The operation of the IQ- 1200 is controlled using the WINDOWS compatible software already installed on the IQ-203. It offers all the traditional functions of a power meter absolute and relative power measurements, offset nulling, etc. plus full acquisition capability, unique virtual channel features, and a powerful graphical display. The IQ-1203 incorporates four independent photo detectors for multi-channel monitoring or multi-component testing. Features:Four optical channels plus a virtual channelChannel identification and selectionIndependent channel configurationPower displayed in dB, dBm, or watt (pW, nW, pW, or mW) at a userdefined or automatic resolutionAbsolute, reference, and offset display modesMultiple operating wavelengths at 1 nm resolutionTimed and conditional (trigger) data acquisition and storageAbility to save multiple customized configurations SPECIFICATIONSDetector InGaAs
Detector size (mm) 1Measurement range +9 to -85 dBm Accuracy 0.2 dBWavelength Range 800 to 1700 nmWavelength Resolution 1 nmPower Resolution 0.001dB
