Hp agilent 58536A gps distribution amplifier

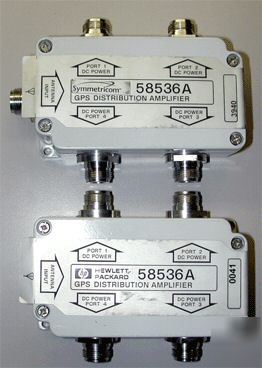

HP 58536A GPS Distribution Amplifier
The HP 58536A distribution amplifier/splitter distributes the GPS signal to four output ports, respectively. For ease of installion and configuration, these units feature built-in amplification to provide unity gain from input to each of the output ports. High isolation between output ports eliminates the risk of interaction between GPS receivers connected to the distribution amplifier.
Frequency Range: 1575.42 +/- 20 MHz (L1 carrier)
Gain (input to output): 0 dB +/- 3 dB
Operation Environment: -35 to 75 degrees celsius
